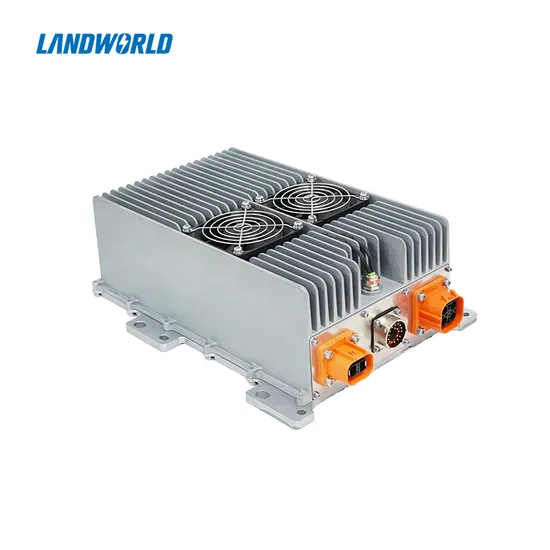

Landworld 6.6kw on Board Charger Battery Charger

Product Description

Product Features: Product dimension: 314x211x115mm Product weight: ≤10KG Cooling method: Fan cooled, IP rating: IP67 Support on-line upgrade and fault diagnosis High power density, modular design, easy for modular integration Full digital SW design, redundant protection function design Main Technical Parameters

Items	Technical Spec.	Remarks
Operation temperature	-40-85ºC	Working for long time
Nominal output power	6.6kW
Input voltage	85-265Vac
Nominal Vout	200-450VDC
Nominal output Current	20A
Eff.	≥94%	@Nominal voltage
Voltage accuracy	±1%
Current accuracy	±3%
Low voltage Aux. Output	100W	27V
Wake up method	AC
CAN communication	CAN-BUS
Static current	≤2mA	Current consumption at sleep mode or standby status
EMC standard	GB/T18387-2008, EN 55022	EMC standard
Protection features	Input OVP/UVP, output OVP/UVP,OTP, OCP, output short-circuit protection, CAN communication breakdown protection

---
