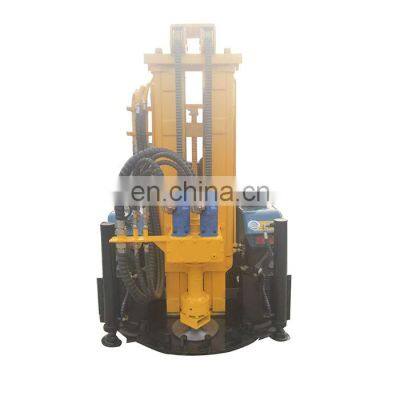

HXZJ-200A engineering and water-well drilling rig adopts large gantry frame, double hoist set, the frame up and down is controlled by itself, and it can affuse the slurry itself, the moving pipe is easy to discharge the mud. This type of drilling rig is used in construction of building, bridges, ports, dams and deep well drilling.
Technical parameters
|
Drilling depth (m)
| 50
| 200
|
Drilling diameter (mm)
| 1500
| 500
|
Inner diameter of turntable (mm)
| 250
|
Turntable rotation speed (forward and reverse) (r/min)
| 45; 65; 113
|
Rated output torque of turntable (KN.m)
| 7
|
Main hoist lifting capacity (single rope) (KN)
| 22
|
Auxiliary hoist lifting capacity (single rope) (KN)
| 17
|
Bearing capacity of hydrant (KN)
| 150
|
Matching power of main machine (KW)
| 22
|
Working conditions (mm)
| 4800×2260×8550
|
Transport conditions (mm)
| 8410×2260×2360
|
The weight of whole machine (kg)
| 4970
|
