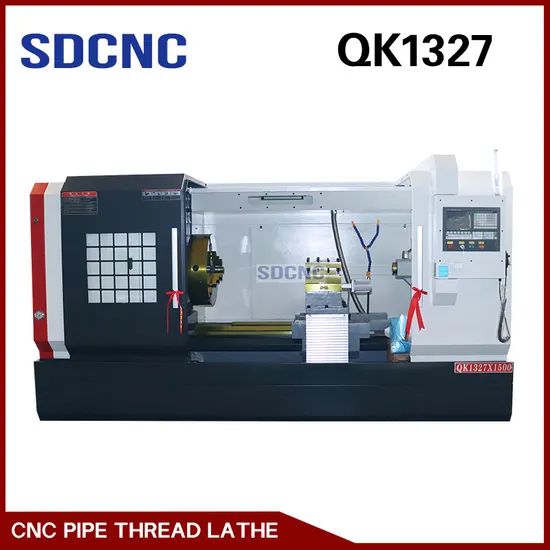

Qk1327 Big Hole High-Capacity CNC Pipe Threading Lathe Machine

Product Description

The main performance characteristics: Big spindle bore and double chuck allows clamp and process big diameter pipes; Integral machine bed adopts high strength iron to relize high rigidity and precision; Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance; Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy. Application: QK1327 CNC Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on. Standard Accessories: Fanuc CNCsystem,NC turret 4 position,Coolant system,Lubrication system,Lighting system,Mobile hand-wheel,Semi-shield,Manual tailstock,Chuck,Rear support bracket, Pad iron etc. Optional Accessories: CNC system(Simens,Fagor,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc. Product Parameters
Product main technical parameters:

ITEMS		UNIT	QK1327
Capacity	Swing over bed	mm	1000
	Swing over cross slide	mm	610
	Distance between centers	mm	1500
	Pipe threading range	mm	130-270
	Width of bed way	mm	755
	Max.load capacity	T	5
Spindle	Spindle bore	mm	280
	Spindle speed steps	-	Step-less
	Spindle speed range	rpm	0-450
	Chuck size	mm	800
	Chuck type	-	4-jaw manual
Turret	Turret type	-	NC turret 4 position
	Tool shank size	mm	40x40
Carriage	X axis travel	mm	500
	Z axis travel	mm	1250
	X axis rapid traverse speed	mm/min	4000
	Z axis rapid traverse speed	mm/min	4000
Tailstock	Tailstock quill diameter	mm	140
	Tailstock quill taper	-	MT#6
	Tailstock quill travel	mm	300
Motors	Main spindle motor	kW	Servo 22
	Coolant pump motor	kW	0.125
Accuracy	Positioning accuracy	mm	0.020
	Repositioning accuracy	mm	0.010
Dimensions	Width x Height	mm	2200x2150
	Length	mm	4800
Weight	Net weight	T	10.0

---
