Blow Moulding Machine

US$20,000.00-45,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Lk-4000L
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Model
Lk-4000L
Control System
Computerized
Bottler Material
Pet
Bottle Volume
100ml to 2000ml
Machine Capacity
4000 Bottles Per Hour
Machine Installation Power
55kw
Suitable for
Water Bottle, Beverage Bottle, Oil Bottle...Ect
Workers Requests
1 Worker
Certificate
SGS, ISO, Ce,..
Weight
2400kgs
Transport Package
Wooden Export Package
Specification
ISO, SGS, CE
Trademark
LINKS
Origin
Zhangjiagang City, China
HS Code
84774010
Production Capacity
50/Month

Product Description

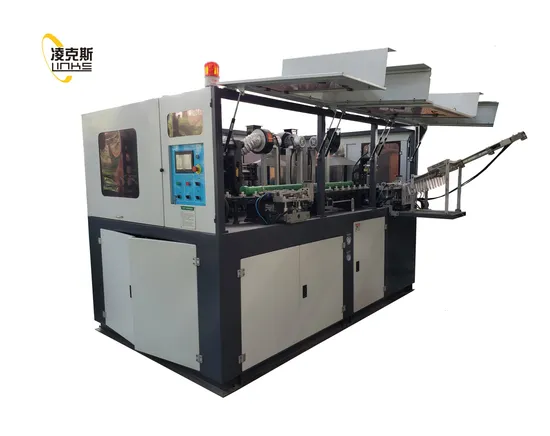

Automatic 4-Cavity PET Bottle Blow Moulding Machine
*Introduction and Advantage
1). This PET Bottle Blowing Machine adopts the new type double bend arm and four pull rod-clamping structure (won the patent). Cross direction; middle mould board is move parallel; the distance between two mold bases is adjusted by the chain wheel. Thus, the clamping force is very strong.
2). The plastic bottle making machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable.
3). Full automatic plastic bottle blowing machine the straight slide way, reduce the friction and lengthen the life of the machine.
4). Double start working button, which is designed for avoiding the injury.
5). Power saving design that can increase your profits.
6). The single direction of pre-form placing and bottle picking, which increase the output.
7). Segregate type air controlling system, which is designed for avoiding waste pollution.
8). The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator.
*Parameters

Model
LK-2000 LK-4000L LK-6000

Theoretical Output(b/h)
2200 4000 6000

Clamping System

Cavities
2 4 6

Clamping Unit(Kg)
20000 48000 56000

Mold Stroke(mm)
120 130 90

Stretch Stroke(mm)
320 340 250

Bottom Stroke(mm)
30 30 30

Cavity Pitch(mm)
120 120 120

Heating Pitch(mm)
55 55 55

Number of Holders(pcs)
64 114 114

Container

Max. Container Volume(L)
2 2 0.6
()
Max. Neck Diameter(mm)
32/38 38 38

Max. Preform Height(mm)
140 140 100

Max. Container Diameter(mm)
105 110 65

Max. Container Height(mm)
320 340 250

Electrical System

Heating Oven
2×9 4×4 8×8
×
Box × Channel
2×9 4×12 8×7

Number of Lamp(pcs)
18 48 56

Heating Power(kw)
21.6 57.6 67.5

Installed Power(kw)
25.5 65 75

Voltage(V)
220V/380V/3phases

Air System

Blowing Pressure(Mpa)
3.5 3.5 3.5

High Pressure Air Consuming(L/min)
2000 4200 5600

Chiller System

Temperature(c)
10-15

Pressure(Mpa)
0.3-0.5 0.3-0.5 0.4

Flow Rate(L/min)
40 80 80

Heating Power(HP)
4 5 5

Machine
(L×W×H)
Machine Dimension(mm)
2600×1800×1800 3800×2000×2000 4800×2200×1800

Weight(kg)
3500 6000 5500

*About Links Machinery

FAQ 1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
