PVC Material Crane Load Testing Water Weight Bag

Product Details

Product Details

Product Description

Product Description

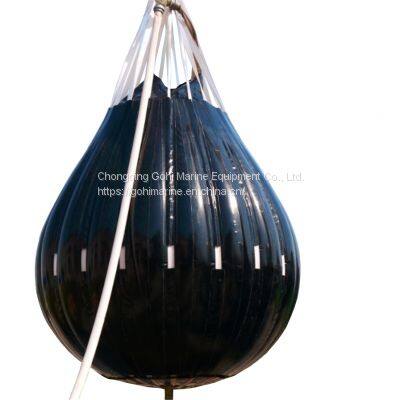

PVC Material Crane Load Testing Water Weight Bag
Certificates
ISO, SGS, BV, Lr, ABS
Transport Package
Plywood Box for Crane Load Test Water Weight Bag
Specification
1~100ton
Trademark
GOHI
Origin
China
HS Code
8907900090
Production Capacity
5000 Sets/Year
Product Description
PVC Material Crane Load Testing Water Weight Bag meet the need for the simple, economy, convenience, safety and high efficiency load testing method instead of traditional solid test method.
PVC Material Crane Load Testing Water Weight Bag used for the proof load testing of crane, davit, bridge, beam and other lifting equipments and structures in the maritime, oil&gas, power plants, militray, heavy construction, and manufacturing industries.
PVC Material Crane Load Testing Water Weight Bags are designed with 6:1 safety factor at least.
Capacities of PVC Material Crane Load Testing Water Weight Bag:
ModelCapacity(kg)DiameterFilled HeightGross weight
PLB-11,0001.3m2.2m60kg
PLB-22,0001.6m2.6m80kg
PLB-33,0001.8m2.8m100kg
PLB-55,0002.2m3.5m120kg
PLB-1010,0002.7m4.0m200kg
PLB-12.512,5002.8m4.5m220kg
PLB-1515,0003.0m5.0m240kg
PLB-2020,0003.5m5.8m300kg
PLB-2525,0003.7m6.0m330kg
PLB-3030,0004.0m6.5m380kg
PLB-3535,0004.2m7.0m420kg
PLB-5050,0004.6m7.6m560kg
PLB-7575,0005.3m8.8m750kg
PLB-100100,0005.8m9.6m900kg

Introduction
Proof Load Testing Water Weight Bag is a stylist and practical load test equipment which uses water instead of traditional solid weights for load testing. It is designed to measure the weight and actual load of equipments accurately instantaneous to verify if they meets the design and rated load requirements. This water filled weight bags provide an innovative load testing solution with the advantages of safety, convenience, economy and high efficiency in that they are being widely used for dock cranes, lifeboat davits, hosted platforms, derricks and so on in marine and other industry sectors. It is made from heavy duty UV resistance fabric which comes ready with quick-set water inlet and outlet with all necessary hoses, gather slings, shackles, and master link.
Features and Advantages
Compared with traditional load testing method of using solid weights, Proof Load Testing Water Weight Bag has the following advantages:
→ Safety Due to its soft structure, the water weight bag won’t harm the ground or deck in case of falling during the test.
→ High efficiency Easy to install and operate. No need to be equipped with balance weight.
→ Convenience The dead-weight of a no load water weight bag is very light. It is suitable for different environment.
→ Economy The transportation and installation costs of water weight bags are pretty low, even a light truck is enough for tonnage load, only need 3-4 people to handle the operation.
