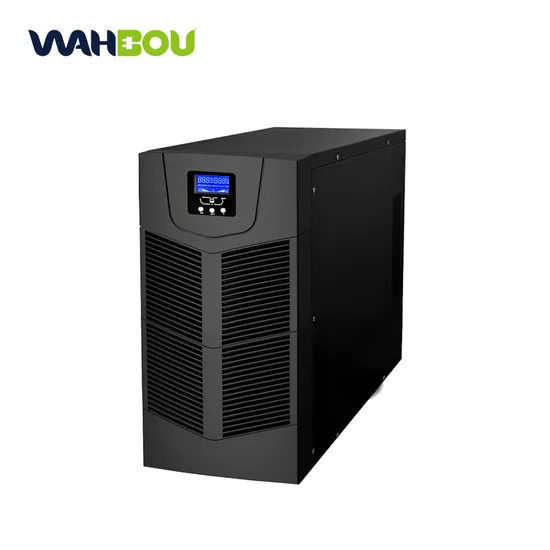

Wahbou 220V 3kVA Single Phase High Frequency Online UPS with External Battery

US$85.00-165.00 1 Set (MOQ)

Basic Info.

Model NO.
VT 3KS
Protection
All of Overvoltage, Short Circuit, Overcurrent etc
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Brand
Wahbou
Input Voltage Range
90-285VAC
Working Frequency Range
40-70Hz(Settable)
Input Power Factor
>=0.99
Output Power Factor
0.9
Charger Current
Settable 1~6A(Customizable)
Transport Package
Neutral Carton Box
Specification
280x144x230mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year

Packaging & Delivery

Package Size
42.00cm * 15.00cm * 25.00cm
Package Gross Weight
7.000kg

Product Description

Wahbou 220V 3KVA Single Phase High Frequency Online UPS with External Battery
Our Advantages
Product Description
Product Parameters
Model ST 1KVA ST 1KS ST 2KVA ST 2KS ST 3KVA ST 3KS
Rated Power 1kVA/0.9kW 2kVA/1.8kW 3kVA/2.7kW
Input Voltage Range 90-285Vac 1P2W+G
Working Frequency Range 40-70Hz (settable)
Input Power Factor ≥0.99
Output Rated Voltage and Accuracy 220Vac(1±2%) 1P2W+G
Output Frequency 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery)
Rated Current 4.5A 9.1A 13.6A
Output Power Factor 0.9
Output Harmonic Wave ≤4% (Full R load)
Crest Factor 3:1
Output Overload Overload pre-warning :100%±2%<Load Output warning:102%±2%≤Load≤110%±2%: Convert to bypass mode and alarm after 30mins;
Output warning:110%±2%<Load≤130%±2%: Convert to bypass mode and alarm after 10mins;
Output warning:130%±2%<Load≤150%±2%: Convert to bypass mode and alarm after 30s; Convert to bypass mode and alarm after 200ms, Load>150%±2%
Conversion time between Mains Power and Battery 0ms
Efficiency ≥90% (Normal mode)
Battery Rated Voltage 24Vdc 36Vdc 48Vdc 72Vdc 72Vdc 96Vdc
Quantity 2 External 4 External 6 External
Charging Current 1A 5.5A 1A 5.5A 1A 5.5A
Dimension (LxWxH) mm 280x144x230 400x144x230 425x190x328 400x144x230
Weight 7.8kg 4.2kg 13.3kg 6.4kg 23.4kg 6.5kg
Working Temperature 0ºC-40ºC
Working Humidity 20%-95% (non-condensing)
Noise ≤50dB
Detailed Photos
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and You are Welcom to visit us anytime!
