Reliable and Stable ABA 3layers High Speed PE Polythene Film Blown Extruder

US$35,000.00
1-2 Sets
US$34,000.00
3-4 Sets
US$32,000.00
5+ Sets

Basic Info.

Model NO.
SJ-50X2FM800, 1000, 1200.1500
Maximum Folding Width of Film
600-1500mm
Screw Diameter
50*2/55*2
Automation
Automatic
Computerized
Computerized
Machine Weight
10T
Certification
CE, ISO9001:2008
Material
HDPE. LDPE, Biodegrade, PLA
Film Width
800/1000/1200/1500mm
Screw Material
Bimetalic High Speed Screw
Die Head.
ABA Three Layers
Air Ring
Double Lips Air Ring
Speed
100-120kgs/H
Rewinder
Automatic Cutting and Change Roll
Motor Brand
Siemens Brand
Inverter
Delta Brand
Electrical Parts
Schneider
Power
3p/380V/415V/220V
Transport Package
Standard Wooden Box, etc.
Specification
CE, ISO
Trademark
SANBI
Origin
China
HS Code
8477301000
Production Capacity
100-180kgs/H

Product Description

Reliable and stable ABA 3layers High Speed PE Polythene Film Blown Extruder
Specification :
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
Technical parameter:
Model ABA 1200 ABA 1700
Screw Diameter Ф50×2 Ф60×2
Screw Ratio L/D 30:1 30:1
Screw Speed 15-120r/min 15-120r/min
Main Motor Power 18.5Kw×2 30Kw×2
Extrusion Output 100-120kg/h 180kg/h
Range of Die ABA Ф250 For LDPE ABA Ф350 for LDPE
Single-sided Thickness of Film 0.02-0.12mm 0.02-0.12mm
Max. Folding Width of Film 1200mm 1500mm
Electric Total Capacity 50Kw 80kw
Overall Dimension 6000×3500×6500mm 7000×4000×8000mm
Weight of Machine 8T 12T

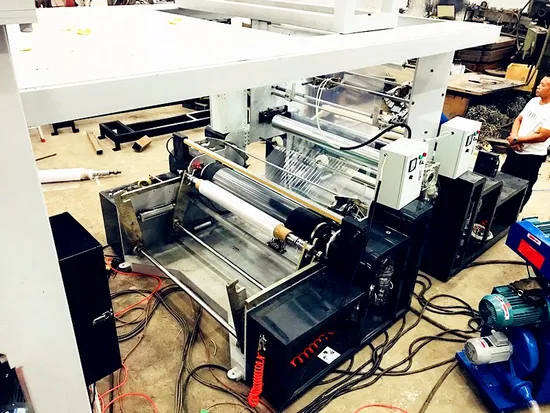

Machine pictures
