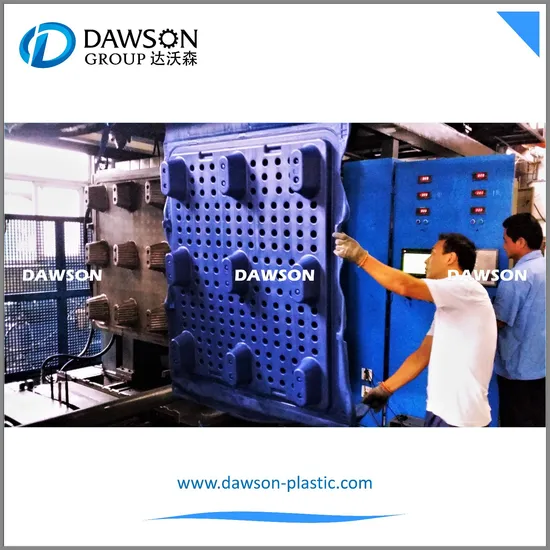

Plastic Pallets High Quality Extrusion Blow Molding Machine

US$65,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ABLD150
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Drum, Plate, Float, Roadblocks, Medical Bed Board
Max. Product Volume
250L
Clamping Force
1800 Kn
Machine Type
Accumulation Blow Molding Machine
Die Head Number
Single Head Blow Molding Machine
Moog Parison Controll
Available
Servo Motor
Available
Delivery Time
55-60 Working Days
Warranty
12 Month
Screw Diameter
120*2 mm
L/D Ratio
33
Drive Motor
132*2 Kw
Heating Zone with Cooling Fan
6*2 Zone
Output/Capacity
620~840 Kg/Hr(HDPE Particle)
Heating Capacity
36*2 Kw
Transport Package
Film Packing
Specification
ABLD100
Trademark
Dawson
Origin
Zhangjiagang, Jiangsu, China
HS Code
8477301000
Production Capacity
up to Product

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Extrusion Blow Molding Machine ABLD150
extruder
1 Screw diameter 120*2 mm
2 L/D ratio 33
3 Drive motor 132*2 Kw
4 Heating zone with cooling fan 6*2 zone
5 Output/Capacity 620~840 Kg/hr(HDPE particle)
6 Heating capacity 36*2 kw
Accumulator Head
1 Accumulator capacity 70L
2 Design First in and first out
3 Heating zone 6 zone
4 Heating capacity 64 kw
5 Max die&pin diameter 1000mm
6 Accumulator push-out stroke measurement Transducer Italy Gefran
7 Extruder stop Have
CLAMPING UNIT
1 Platen size 1800X2120
2 Length of mold 1730-2200mm
3 Clamping force 1800KN
4 Close/Open stroke 1000-2700mm
5 Clamping stroke measurement Transducer Italy Gefran
6 Hydraulic valve Taiwan Hitech
PARISON CONTROL
1 Programmer JAPAN MOOG
2 Servo valve
MOOG
3 Servo cylinder Intergret of die head
4 Hydraulic pack
 TAIWAN YOSHE Variable Displacement Piston Pumps
