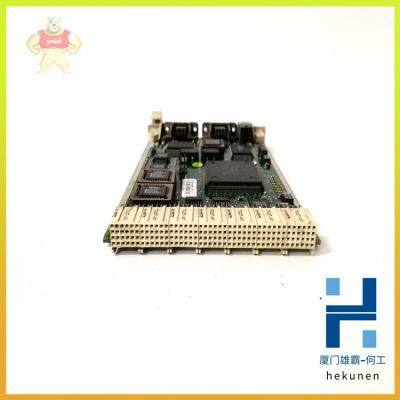

CI520V1 CI522A 3BSE018283R1 ABB Interface module control system parts
CI520V1 CI522A 3BSE018283R1 ABB Interface module control system parts
The introduction of the 58xx firmware series for both MicroFlex e190 and MotiFlex e180 servo drives brings with it the inclusion of Modbus TCP client functionality. This allows these already powerful and flexible drives to connect to a variety of Modbus TCP server devices such as barcode scanners, PLCs, HMIs and ABB’s own Modbus TCP I/O expansion modules, CI521-MODTCP and CI522-MODTCP. The drives can connect up to 2 CI521 or CI522 modules, each of which can be fitted with up to 10 further S500 I/O expansion modules which are simply plugged onto the side of the preceeding module. If the reader is not already familiar with the e190 and e180 drive range it is recommended that they familiarise themselves with the contents of installation manuals 3AXD50000037326 (MicroFlex e190 installation manual) and 3AXD50000019946 (MotiFlex e180 installation manual). For full details on the CI521 and CI522 modules please refer to the Automation Builder help system. Connection information for the S500 expansion modules is also contained within the Automation Builder help system. These modules can be used together with the following base units: · TU507-ETH (screw terminal connections) · TU508-ETH (spring/cage clamp connections)
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
For correct operation of the Modbus TCP I/O modules please ensure the following firmware is installed: MicroFlex e190: 5868 or later MotiFlex e180: 5811 or later (although 5868 is recommended to take advantage of the latest features) CI521 / CI522: V3.1.7 or later (the firmware version installed on these modules can be determined by reading Modbus registers 6 and 7 from the device. For example with the module connected to the drive and configured as server device 0 enter… ? Hex MODBUSTCP16(0,6) ? Hex MODBUSTCP16(0,7) …at the Workbench command line. These commands should return the values 5603 and 107 for example (56 = ASCII V, followed by the version 03 01 07). If the Modbus I/O base modules need updating please contact your local ABB support office (an AC500 PLC program is available to perform this update in the field but it may be necessary to return them for upgrade).
This (base) module provides the following I/O points: - 4 analog inputs (12 bit resolution + sign bit) - 2 analog outputs (12 bit resolution + sign bit) - 8 digital inputs (24Vdc, current sinking) - 8 digital outputs (24Vdc, 0.5A, current sourcing) The analog inputs are configurable for use in a wide range of modes including 0-10Vdc, +/-10Vdc, 4-20mA, 2 and 3 wire Pt100, Pt1000 and Ni1000 thermocouples. The analog outputs are configurable for operation in three different modes; +/-10Vdc, 0-20mA and 4-20mA. The module is provided with rotary switches to set the last octet of its IP address (192.168.0.rotaryswitches). Two Ethernet sockets allow the module to be daisy-chained to additional CI521-MODTCP or CI522-MODTCP modules if the system is fitted with a number of distributed I/O modules/racks. Status LEDs on the front of the module indicate the general operating status of the module, the Modbus network and the state of each I/O point. The analog input and output levels are indicated via LEDs of varying brightness. CI522-MODTCP This (base) module provides the following I/O points: - 8 digital inputs (24Vdc, current sinking) - 8 digital outputs (24Vdc, 0.5A, current sourcing) - 8 configurable I/O (inputs or outputs, 24Vdc current sinking inputs, 24Vdc 0.5A current sourcing outputs) The module is provided with rotary switches to set the last octet of its IP address (192.168.0.rotaryswitches). Two Ethernet sockets allow the module to be daisy-chained to additional CI521-MODTCP or CI522-MODTCP modules if the system is fitted with a number of distributed I/O modules/racks. Status LEDs on the front of the module indicate the general operating status of the module, the Modbus network and the state of each I/O point.
>>
