OEM ODM Type Servo Fully Automatic Laminator Machine for Cardboard and Corrugated

Product Description

OEM ODM Type Servo Fully Automatic Laminator Machine for Cardboard and Corrugated Product Description
Main Feature
-Designed speed 10,000
-Servo tracking compensation positioning
-Overlapping and broken paper feeding of face paper
-The whole machine adopts 4 servo motion control Product Parameters

Mode	AVT-1450B	AVT-1650B	AVT-1650B+
Max. Sheet (WXL)	1450x1450mm	1650x1450mm	1650x1650mm
Min.Sheet(WXL)	400x400mm	400x400mm	400x400mm
Power Required	18kw	20kw	20kw
Conveyor Speed	140-800g/m	140-800g/m	140-800g/m
Production Speed	120m/min	120m/min	120m/min
Fit Accuracy	±1mm	±1mm	±1mm
Dimension (LXWXH)	13.5x2.2x2.5m	13.5x2.4x2.5m	13.5x2.4x2.5m
Weight Machine	5.5T	6T	6.5T

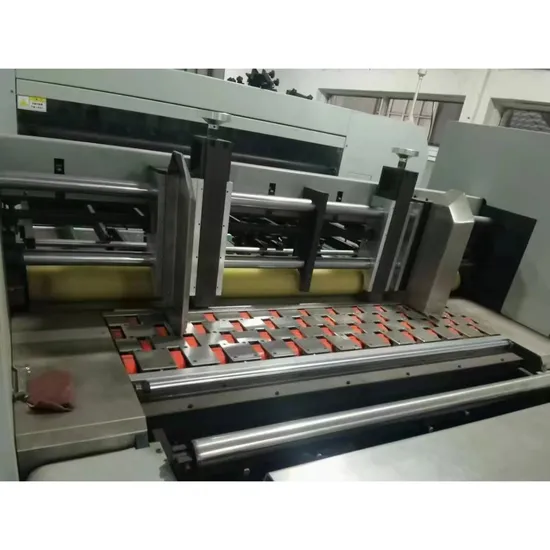

Detailed Photos
Sketch Map
Branch Introduction
Electrical Control System
In accordance with the European CE standard design, intelligent fault detection, to ensure the stability of the machine, high efficiency, low fault. With man-machine interface and PLC, the warning, fault detection, abnormal conditions and operation speed and other information will be displayed on the screen.
Paper Positioning System
The servo motors on both sides of the face paper are controlled to perform independent transmission compensation by sensing the relative advancing position of the back paper with multiple photoelectric groups, so as to make the face paper and the back paper fit accurately.
Transmission System
The whole machine adopts imported double-sided teeth and single-sided teeth synchronous belt drive; Shaft roller and synchronous wheel adopt no-key tightening sleeve locking design, to ensure the transmission accuracy, stability and low noise.
Gluing System
Using unique technology prismatic roller design, make the whole machine coating more uniform; The lower roll is cleaned by water roll.
Belt Feed System
Double servo motor motion control system, equipped with high pressure suction fan, suction size frequency conversion adjustment, servo motor independent control of suction time (patent), to ensure that different watts of paper running smoothly out of paper.
Leading Edge Feed System (Optional)
It adopts patented leading edge paper feeding structure, dual servo motor motion control system, equipped with high pressure suction fan, variable frequency adjustment of suction size, servo motor independent control of suction time (patent), suitable for all kinds of large size thickening, bending and deformation of corrugated board, to ensure the smooth operation of different wallen paper at high speed.
Feida Paper Feed System
Adopt high speed four suction and four feeding Feida head, face paper for the double mode of repeated type and broken sheet type, so that the face paper at high speed to achieve smooth and stable operation.
Paper Stacking System
The double mode of superimposed transverse structure (patent) and ground rail prestacked paper structure is adopted. One is chosen according to the tidiness of the face paper to increase efficiency more effectively.
Company Profile
Dongguang Hongyu Machinery Trading Co., Ltd. is located in Dongguang County, Cangzhou City, Hebei Province, a world-renowned packaging machinery base. Since its establishment in 2004, it has been dedicated to providing customers with high-quality cardboard machinery equipment, accessories, and solutions. As a professional machinery trading company, we are committed to becoming a leader in the field of carton machinery trading. Through continuous technological innovation and excellent customer service, we have won wide recognition in the industry and provided a large number of high-quality products for the international packaging industry.
Business Scope:
Sales of mechanical equipment and accessories: We provide a range of industrial machinery and equipment, including but not limited to CNC machine tools, automated production lines, robot systems, etc. Technical Support and Services: Provide comprehensive technical support, including equipment installation, debugging, maintenance, and upgrade services. Customized solutions: Provide customized mechanical solutions based on customer needs to meet specific production requirements. International trade: Our business covers the globe and we have established stable cooperative relationships with suppliers and customers from multiple countries and regions. Core Advantages: Professional team: We have a team of experienced engineers and technicians who can provide professional consulting and technical support. Quality Assurance: We strictly control product quality to ensure that every device meets the highest industry standards. Customer first: Always prioritize customer needs, provide personalized services, and respond quickly. Continuous Innovation: Investing in research and development, constantly introducing new technologies and products to maintain market competitiveness. Company Vision:
Our goal is to become a leading global machinery trading company, creating greater value for our customers through continuous technological innovation and excellent service.
FAQ
Q: Are you a factory or a trading company?
A: We are a direct manufacturer located in Dongguang County, Cangzhou City. Welcome to visit our factory! If you want to visit the factory online, we can also have a video call.
Q: How do you ensure your quality?
A: 1.Trustworthy and long-term cooperative raw material suppliers;
2. Skilled and experienced engineers and workers;
3. Mature quality control system;
4. Designate a dedicated person;
5. Advanced production workshop.
Q: Do you provide customized services?
A: Of course, both OEM and ODM are acceptable.
Q: How is your after-sales service?
A: 1. A dedicated after-sales team will be online 24/7;
2. Can provide on-site guidance for installation;
3. Spare parts warranty for one year.
Q: What payment terms do you accept?
A: We usually accept wire transfer payments, and we require a deposit of 30% of the total amount, with the remaining 70% to be paid before delivery. However, we can also accept letters of credit.

---
