SHUIYI SMU-40F MBR Element to Replace SUZE ZeeWeed 500D MBR Element

Product Description

About SHUIYI
After years of honed in the competition, SHUIYI has become one of the few manufacturers in the industry with a full range of membrane technologies and products including microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and reverse osmosis (RO).
Our membrane products are widely used in the application fields of municipal sewage reclamation, industrial wastewater zero discharge, reclaimed water reuse, pure water preparation, highly polluting wastewater treatment, river restoration, decentralized rural sewage treatment, process concentration, and separation, etc., with rich application experience and engineering project cases.
Introduction

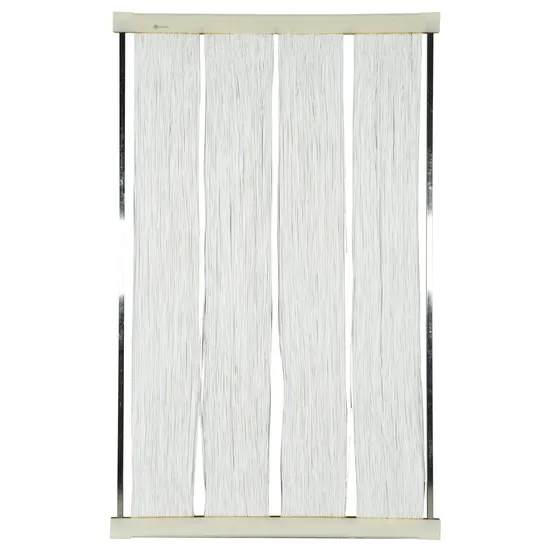

SHUIYI UltrafilTM series of immersed ultrafiltration elements adopt a new formula, the support layer and the membrane separate layer are perfectly matched to form a high flux, high strength hollow fiber through a special composite production process. The sheet-type membrane elements immerse in the membrane tank with high system integration and reliable water production quality. SHUIYI immersed ultrafiltration membranes are widely used in municipal tap water, reclaim water reuse, which can remove suspended solids and microorganisms in raw water.
Features Lower energy consumption and higher efficiency; Higher mechanical strength, slower flux decline, longer service life; Standardized modularization design for easy installment and replacement; Stable and reliable water production; Slower contamination speed, longer clean cycle. Specifications

Membrane Specifications	Model	US-35E	US-35A
	Material	Support layer: PET Separate layer: PVDF
	Active Membrane Area	35 m2
	Nominal Pore Size	0.03 μm
	Hollow Fiber Inner/Outer Diameter	2.05/2.6 mm
	Filter Type	Reinforced outside-in membrane
Membrane Module Specifications	Model Dimensions	1250×2000×30 mm	824×2400×46 mm
	Outlet Connection Size	Ф24	DN32
Material	End	ABS
	Sealing Material	Epoxy resin/Polyurethane
	Center Pole	SUS304	/
Weight	Membrane Weight (Dry)	16 kg	14 kg
	Membrane Weight (Wet)	32 kg	30 kg
Operation Conditions	Temperature	5~40ºC
	pH	2-10
	Operating Flux (LMH)	30-45
	Backwash Flux (LMH)	55-70
	Recommended Transmembrane Pressure (TMP)	0-35 kPa
	Maximum Backwash Pressure	70 kPa
	Aeration Intensity	60-120 Nm3/h·m2 shadow area
	Chemical Cleaning pH Range	1-11
Quality of Permeate Water	Turbidity	≤ 0.2 NTU
	SDI15	≤ 3.0

P.S The design flux and backwash flux depends on the operation and maintenance of the entire system
Applications Municipal tap water Municipal reclaimed water Municipal wastewater Reclaimed water reuse Basin governance

---
