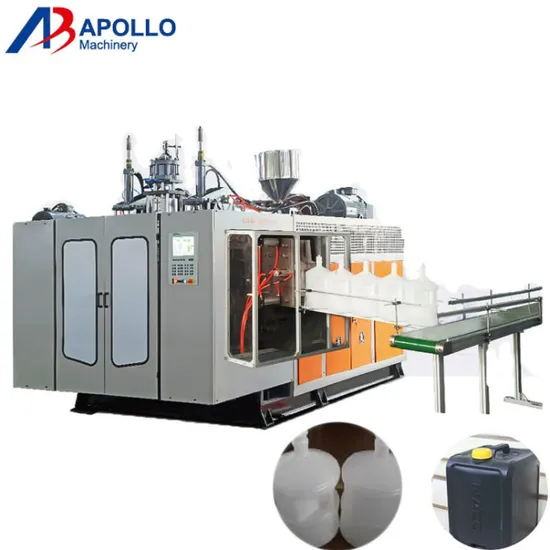

10L Oil Drum Extrusion Blow Molding Machine

US$40,000.00-68,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ABLB90II
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Online Service
Product
10L Oil Drum Extrusion Blow Molding Machine
Screw Diameter
90mm
Station
Double Station
Parison Controller
Available
Auto-Deflashing Unit
Available
Transport Package
Film Packaging
Specification
CE/SGS
Trademark
Apollo
Origin
Jiangsu, Zhangjiagang
HS Code
8477301000
Production Capacity
150-200PCS/H

Product Description

Basic installation including Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.
Unit price (including one series of spare parts)
Unite price (including one series of spare parts for wearing parts)
Max. Product volume 15 liters
Out put capacity 160pc/h
Screw diameter 90mm
Screw L/D ratio 24L/D
Screw drive power 45KW
Screw heating capacity 8KW
No.of heating zone 4 zones
Output of HDPE 128KG/H
Oil pump drive power 11KW
Clamping force 108KN
Max.size of mold 240-660mm
Mold stroke 530X 550mm
Max.die diameter 180mm
Blowing pressure 0.6mpa
Air Volume 0.9M³/MIN
Cooling water pressure 0.3mpa
Water consumption 90L/MIN
Size of Machine 4.2x3x3.2m
Weight of machine 11ton
