CNC Lathe Machine Horizontal Machine Design Ck6180*1500 Ck6180*3000 Ck6180*4000 Ck6180 for Long Workpiece

Product Description

Overview
Application:Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.tapping, boring, etc.

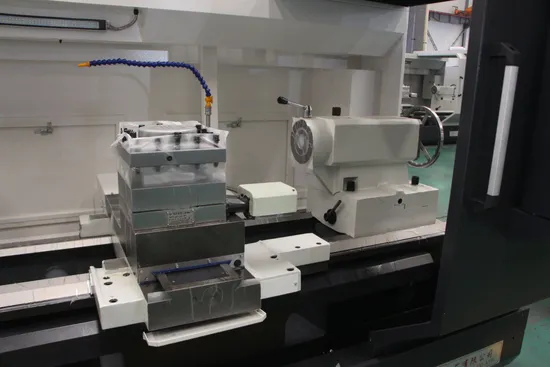

Machine Details
Performance characteristics of Flat Bed CNC LatheThe machine is widely used in electrical appliances, instrumentation industry, automobile and motorcycle accessories, fastener bearing, phtotgraphic equipment, film machinery, hardware, various watches, cultural and educational supplies, motors, valves, gas pipes and other high-precision complex parts processing and manufacturing is the most ideal and efficient equipment in the hardware machinery processing industry.
Specifications
Important Note:1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

SPECIFICATION OF CNC LATHE MACHINE
ITEMS		UNIT	CK6180 CNC Lathe
Capacity	Swing over bed	mm	Φ800
	Swing over cross slide	mm	Φ550
	Distance between centers	mm	3000
	Width of bed way	mm	550
	Max. load capacity	T	3
Spindle	Spindle bore	mm	Φ104
	Spindle bore taper	-	MetricΦ120/MT5
	Spindle nose type	-	A2-11
	Spindle speed steps	-	Manual gear change 3 steps
	Spindle speed range	rpm	10-1000
	Chuck size	mm	Φ315
	Chuck type	-	3-jaw manual
Turret	Turret type	-	NC turret 4 position
	Tool shank size	mm	32x32
Carriage	X axis travel	mm	420
	Z axis travel	mm	2800
	X axis rapid traverse speed	mm/min	4000
	Z axis rapid traverse speed	mm/min	6000
Tailstock	Tailstock quill diameter	mm	Φ100
	Tailstock quill taper	-	MT5
	Tailstock quill travel	mm	250
Motors	Main spindle motor	kW	11
	Coolant pump motor	kW	0.125
Dimensions	Width x Height	mm	1850x1900
	Length	mm	5400
Weight	Net weight	T	5.4

Application
Packaging & Shipping

Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
