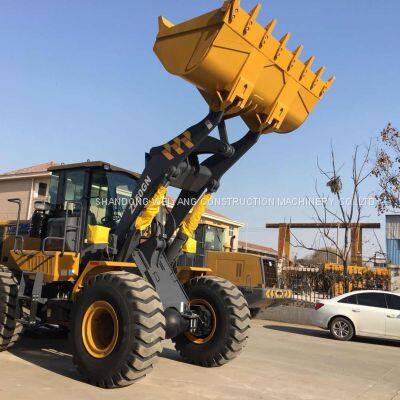

ZL50GN wheel loader is the latest cross-generation product developed by XCMG on the basis of the globalized technologic resources.
Focusing on the customer value and emphasizing the customer experiences, XCMG’s new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.
Item
| Specifications |
Rated operating load
| 5000Kg
|
Bucket capacity
| 2.5~4.5m³
|
Machine weight
| 17500±300Kg
|
Dump clearance at maximum lift
| 3100~3780Mm
|
Reach at maximum lift
| 1100~1220Mm
|
Wheel base
| 3300Mm
|
Tread
| 2250mm
|
Max.breakout force
| 175±5Kn
|
Hydraulic cycle time-raise
| 6s |
Total hydraulic cycle time
| 10.5S |
Min. turning radius over tyres
| 5925±50mm
|
Articulation angle
| 38°
|
Gradeability
| 30°
|
Tyre size
| 23.5-25-16PR
|
Overall machine dimension L×W×H
| 8225×3016×3515mm
|
Model
| Weichai
|
Rated Power
| 162Kw
|
Travel speed (Ⅰ-gear(F/R))
| 13/17Km/h
|
Ⅱ-gear(F)
| 41Km/h |
