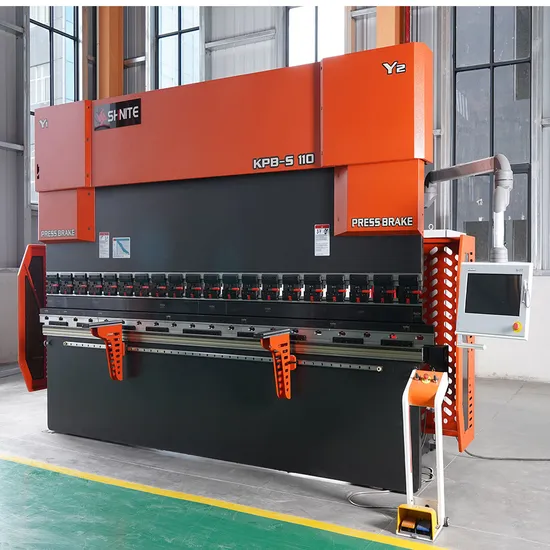

Kpb-S 63X2000 100X3200 Hydraulic Press Brake Machine with for Metal Working

US$9,500.00
1-2 Pieces
US$8,700.00
3+ Pieces

Basic Info.

Model NO.
press brake
Warranty
3-year
Condition
New
Certification
RoHS, ISO 9001:2000, CE
Automation
Automatic
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
CNC Control System
CT8/CT12/Da41/Da42t/Da53t/Tp10s...Optional
Voltage
220V/380V/415V/440V/Customized
Electrical Components
Schneider
Ball Screw/ Liner Guide
Hiwin
Core Components
Bearing, Motor, Pump, Gear
Transport Package
Wooden Case
Specification
customized
Trademark
SHINITE
Origin
Anhui
HS Code
8462991000
Production Capacity
500 Sets/Years

Product Description

Product Description
The CNC press brake uses the mold( general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheetmetal processing. It is widely used in sheet metal bending,such as automobile air craft manufacturing light industry shipbuilding,container, elevator railway vehicles and other industries.Detailed PhotosHYDRAULIC SYSTEM Germany Bosch-Rexroth integrated hydreulic system block, hydraulic transmission with high reliablity, integrated hydreulic systemcan effectively alleviate problems caused by leakag of hydraulic fluid. QUICK CLAMP SYSTEM • Safe and fast tool change • Can be used without modifying Europe type punches • Red Button- Release the Punch Toolings easily • Front clamp - vertical tool change • Rear clamp - horizontal tool changeExpress Crowning System The Express Crowning system helps control deflection or "the canoe effet" in press brake applications over 4 ftlongwith quick, repeatable crowning that is precisely adjusted by a basic hand crank and digital readout or an electric motor driven by the CNC machine control.

TypeNominal ForceWorktable LengthPoles DistanceThroat DepthCylinder StrokeOpening HeightPowerDimension
(KN)(mm)(mm)(mm)(mm)(mm)(KW)L*W*H(mm)
30T/1600300160012952008037031650*1100*1900
50T-1600500160012952601003805.51650*1150*1950
50T/2000500200016802601003805.52100*1200*2200
63T/2500630250020002801203805.52600*1350*2300
63T/3200630320026002801203905.53300*1350*2300
80T/2500800250020002801203907.52600*1400*2350
80T/3200800320026002801203907.53300*1400*2350
100T/25001000250020003201404107.52600*1450*2450
100T/32001000320026003201404107.53300*1450*2450
100T/40001000400032003201404107.54100*1450*2450
100T/50001000500039003201404107.55100*1450*2450
125T/3200125032002600320140410113300*1450*2450
125T/4000125040003200320140410114100*1450*2450
160T/3200160032002600380200460153300*1650*2850
160T/4000160040003200380200460153300*1650*2850
160T/4500160045003400380200460154600*1650*2850
200T/3200200032002600380200460153300*1750*3200
200T/4000200040003200380200460154100*1750*3200
250T/3200250032002600440200460203300*1900*3200
250T/4000250040003200400200460204100*1900*3200
250T/5000250050003900400200460205100*1900*3200
300T/3200300032002600420250480193300*2200*3300
300T/4000300040003200420250480234100*2200*3300
300T/5000300050003900420250480265100*22000*3300
300T/6000300060004900420250480306100*2200*3300
400T/4000400040003200420300500264100*2600*3500
400T/5000400050003900420300500305100*2600*3500
400T/6000400060004900420300500366100*2700*3600
500T/4000500040003200450350550374100*2800*3800
500T/5000500050003900450350550465100*2800*3800
500T/6000500060004900450350550556100*2800*3800
600T/6000600060004900500350550606100*2800*3800
More types press brake, please contact us, will give you best solution
Control System*Control function, support X,Y,R axis servo axis control, C axis hydraulic/mechanical compensation two modes optional* Built-in machine control logic, hydraulic valve group free logic configuration, I/O port free configuration function, simplifies the programming calculation of external line
* Accurate Angle function, built- .in mold base and material list, improved the calculating precision of
* Standard USB interface, which can realize parameter program a key
* Online backup and system software up grade Standard EDS/Pro Net servo series, superior performance, stable quality
* Safety protection, collision detection and collision avoidance R axis positioning function
* Built-in parameters a key to backup and restore function, reduce service costs
* Micro switch according to the keypad, stable and reliable, long lifeCompany Profile
For more details, please contact me
Mobile Phone:+8618055569949
Company Address:East Industrial Park,BoWang Town,Maanshan City,AnHui Province,China
