16mm IP68 Waterproof Metal Pushbutton Switch

Product Description

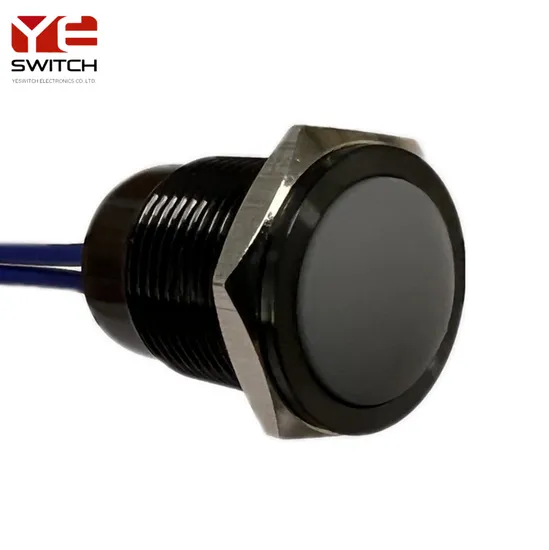

16MM IP68 Waterproof Momentary/Latching Metal Pushbutton Switch
Yeswitch PBM-16 series Metal pushbutton switch is IP68 waterproof rating .The metal pushbutton is suitable for a variety of application environment with varous LED option.
The series waterproof pushbuton switch has alread passed CQC/CE/SGS/REACH/TUV certificate.
Product parameters

Panel Cutout: 16mm Diameter Max.Switch Rating: 4A 32V AC Switch Combination: NO-OFF Operation Type: reset type Housing material: plastic Light shape: Overall luminous Base: PA66 Operating pressure: 350gf-80gf Travel: 2.8mm ± 0.5mm

Contact resistance: 50Ω Max(initial) Insulation resistance: 100MΩ Min Dielectric strength: 2000VAC for 1 Minute Temperature: -20 ° C to 85 ° C LED Ratde voltage: 1.8V/3V/6V/12V/24V/36V 48V/110V/220V ILLUMINATION BASE RATlNG: Red, Yellow and Orange: 20mA 1.8V; Blue, Green and White: 20mA 2.8V

ABOUT US
Yeswitch Electronics Co .,ltd., found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including Metal Push Button Switches, Automotive Switches, key switches, Push button Switches, toggle switches, Rocker switches,etc. Yeswitch have supply all kinds of switches to global market with the good quality and Competitive price. In recent years, we has expanded our product line from industrial products to consumer goods, catering the need for safety, practicality, and penalization. Customized services are also available upon request.
To maintain competitive edge in the global market, Yeswitch has various testing equipment and ISO 9001 quality system, it is a remarkable manufacturer with outstanding product design and development. Yeswitch products also comply with the ROHS and UL standard and meet the special demands of our customers.
Yeswitch maintains a corporate culture of integrity and honesty and we are always adhere to the three principles for better serve our customers around the globe, ie, meeting global standard, accurate operation, on time delivery.

Our Advantages
From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.

FAQ

Q1: When can I get the quotation ?

A: We are online all day, so you can get quotation within 24h.

Q2: Can I get samples?

A: Yes, after confirming the price, we can provide 5-20 samples.

Q3: When can I get the samples?

A: It depends on the express, generally 3-10 days.

Q4: Can you accept small order?

A: Yes, we will try our best to help you with your business.

Q5: What's the lead time of mass production?

A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.

---
