US$95.00
500-1,999 Pieces
Basic Info.
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel, Projects
Certification
CCC, CE, EMC, ETL, FCC, LVD, REACH, RoHS, SAA, VDE
Wattage
80W, 100W, 120W, 150W, 200W, 240W
LED Brand
Nichia, Epistar
Power Supply
UL/TUV Listed Meanwell
Installation Method
Loop Hanging/Bracket
Working Voltage
AC100-277V
Emitting Color
Warm White, Natural White, Cool White
Transport Package
1PCS/Bag
Specification
D340*H187mm
Production Capacity
20000PCS/Month
Product Description
120W LED Lighting UFO LED High Bay Industrial LED Lamp 5 years warranty Nichia LED+Meanwell power supply,140lm/W
1. Product Description 1. Original Nichia led, Up to140lm/W
2. UL/TUV listed Meanwell driver, 5 years warranty
3. Power: 80w/100w/120w/150w/200w/240w
4. Various beam angles optional: /60°/90°/110
5. Materials: Die cast Aluminum / Tempered glass (PC lens optional)
6. Installation method: Loop & Hook hanging / Wall mount / Surface mount
2. Specifications:
Power | 120W |
Luminous flux | 16000~17000 lm |
Power factor ( PF ) | >0.95 |
Driver brand | Meanwell HBG |
Color temperature | 3000K,4000K,6000K |
CRI | >80Ra |
Input voltage | AC100-277V |
LED source | Nichia |
Lighting effect | 130-140 lm/w |
Lamp body color | Black |
IP rate | IP65 |
Beam angle | 60°/90°/110° |
Housing material | Aluminum-Alloy Die Casting-12(ADC12) |
G.W | 6 kg |
Working temperature | -30°C~+50°C |
Lifetime | 50000 hrs |
Warranty time | 5 years |

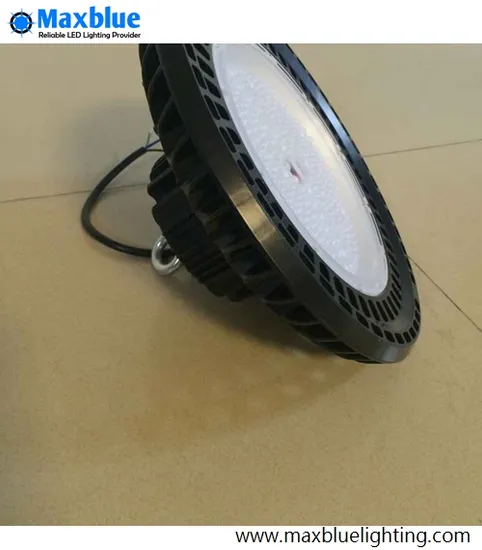

3. Pictures
NOTE: 60.90degree with LENS, and 110degree without lens but with red circle.
4. Size
5. Light Distribution Curve
6. Installation
7. Application
1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. supermarket, shopping mall, exhibition hall;
4. ships, airports, subways, gas station, the train station, highway toll station, dock
5. factory, office, meeting room, conference hall, storeroom, etc.
8. Package
FAQ:
Q1: Are you a manufacturer? Yes, we are. You can check more in our website: maxblue.en.made-in-china.com Q2: Do you have the MOQ request? For our developed products, there is no MOQ for the standard products. Q3: How long can I get my order? The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose. Q4: What is warranty time for your products? If any broken, what I will do? 3-5 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge. Q5: Can I get OEM/ODM customized products for special application? Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc. Q6: What kinds of payment methods do you accept? T/T bank transfer, West Union and Paypal, L/C at sight Q7: What kinds of shipping methods you use? Sea: seaport to seaport, cheap, long time, suitable for big volumn orders Air: airport to airport Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered. Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
>>
