Digital Coating Thickness Gauge Tester F and Nfe Probe

US$49.00
1-99 Pieces
US$47.00
100+ Pieces

Basic Info.

Model NO.
EC-500
Measuring Mode
Single and Continuous
Calibration
Zero and Multi-Point Calibration
Language
English
LCD Display
128*128 DOT Matrix
Reading Memory
50 Readings
Transport Package
Tool Box/Carton
Specification
0~1500 um, 2%+1 um
Trademark
Yuwen
Origin
Shenzhen China
HS Code
9031809090
Production Capacity
50000PCS/Year

Product Description

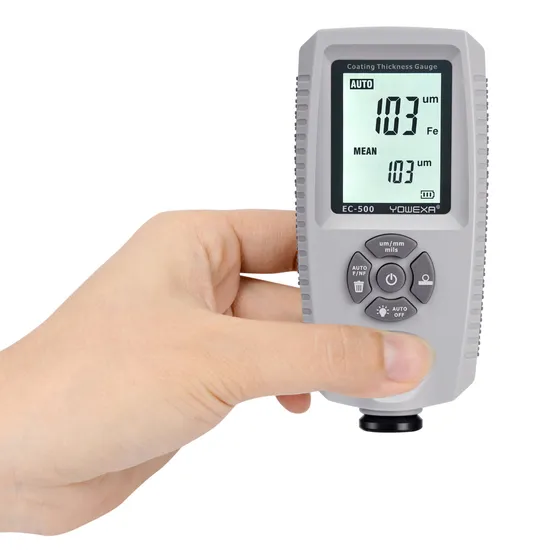

Digital Coating Thickness Gauge Tester F and NFe Probe
Product Overview

EC-500A/EC-500
These gauges can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
Function & Benefits

· High accuracy and stability
· LCD shows number, mean, maximum, minimum
· Easy to do zero calibration
· Power off automatically
· Low battery indication
· Detect the substrates type automatically
Wide Range Of Application

· Metalwork · Automobile Works · Used Car Market
· Foil Manufacturer · Industrial Lacquer · Paper Mill
Specification
Model EC-500 EC-500F EC-500N
Probe F-Probe & N-Probe F-Probe N-Probe
Measuring Principle Magnetic induction & Eddy Currents Magnetic induction Eddy Currents
Measuring Range 0 to 1500um
Accuracy ± (2%+1um)
Resolution 0~99.9(0.1um) 100um~999um(1um) 1000um~1500um(0.01mm)
0mils~3.933mils (0.004mils), 3.934mils~39.39mils (0.01mils), 39.4mil~51.2mil (0.1mil)
Calibration One point to four point calibration, zero point calibration
Data Group One direct group(readings not be stored to memory)
Four general groups (readings will be stored automatically)
NOTE: each group have individual statistics, alarm limit settings and calibration
Statistics No. of readings, mean, minimum, maximum and standard deviation
Units um, mm, mil
Alarm User can set the high/low alarm limit; Alarm icon displayed on LCD when over the limit
Minimum Curvature Radius Convex 1.5mm
Minimum Curvature Radius Concave 25mm
Minimum Measuring Area Diameter 6mm
Minimum Thickness Of Substrate F-probe: 0.5mm(0.02");N-probe: 0.3mm(0.012") 0.5mm(0.02") 0.3mm(0.012")
Maximum Measuring Rate Two readings per second
Computer Interface Download data via USB
Power Supply Two 1.5V AAA battery
Operation Environment Temperature: 0 to 40°C(32 to 104°F); Humidity: 20% to90%RH
Storage Environment Temperature: -20 to 70°C(-4 to 158°F)
Standard Certification ROHS ;WEEE;CE
Dimensions 110mm*53mm*24mm(4.33"*2.09"*0.94")
Case Material And Weight ABS; 92g(3.24 oz)
More Pictures

Company Profile
Certifications
Ask And Question
1. Is the measuring error large?
• Enter the menu interface, clear the calibration data; shut down to restore the factory configuration steps; do zero calibration after booting, (Note: you need to do zero calibration on the customer's own substrate)
2. Does the measurement screen display overflow?
• The coating thickness exceeds the measurement range.
• There is an error and zero calibration is required on the substrate.
• Probe fault
3. Measurement no response?
• Check if the battery has power.
• The probe has a fault.
• Whether the measured material meets the measurement principle.
4. Does the measurement show a negative number?
• It is judged according to the customer's materials whether the machine accuracy is applicable.
• The calibration did not do well and needs to be recalibrated.
5. During the measurement process, is it sometimes display F, sometimes display N?
• The automatic mode undistinguishable the type of material and it requires manual switching of the measurement principle.
6. How to do calibration?
• Please refer to the zero calibration, point calibration step.
7. Long press "ZERO" does not respond?
• You need to restore the factory settings and then operate.
8. It can measurement but there is no reading, why?
• Confirm whether the mode is in continuous measurement mode
• Check if the beep is broken
Why Us?
From raw materials to final products, we have a strict quality control system. Our defective rate is about 0.1%. Our staff is well-trained and educated in this industry, we will save money in the end because of our efficiency and know-how. We have been in business for 10 years and thanks to our R&D department, we always catch the latest trend in the market. With the required certificate and experience after-sales service, there was no issue in the shipment we have arranged. We have rich experience in handling orders for heavy buyers with the professional process. • Stable raw material purchasing
• Favorable order follow-up management
• Laudable lead-time & shipment control
• Traceable quality evaluation
• Flexible payment terms
• Remarkable after-sale service
6. Innovative testing technology is always pursued and to do.
• We are first to create the LED display rotated and red backlight alarm in the world.
• We are the first one create menu operations for coating thickness gauges in China.
• Software: Dgraph can be so easily used to set up, download data, view graph and output reports.
