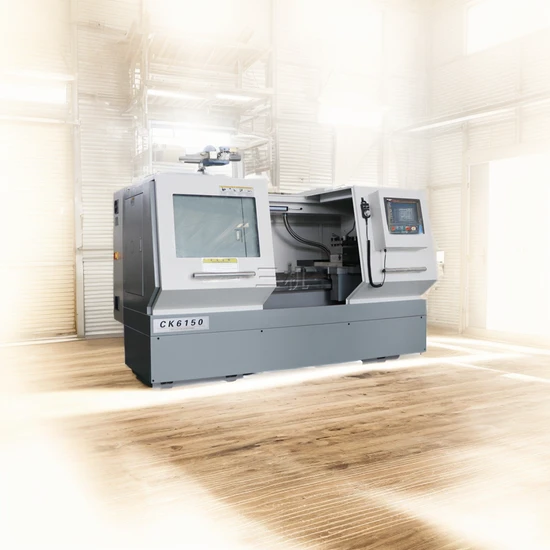

High Precision Ck6150 CNC Machine Tool for Versatile Manufacturing

Product Description

Company Profile
Jiangsu Chenghai IntelligentEquipment Co., Ltd. is located inth intelligentequipmentIndustrialPark,FengxianEconomicDevelopment Zone, Xuzhou City, JiangsuProvince. It is a comprehensive firm that integrates design, manufacturing,sales, and service for CNC machine tools.As a leading manufacturingcompany, thecompanyboastsa 15,000 square meter standardizedworkshop,with phaseIIandphaseIIIintelligentindustrialparksalsounderconstruction. The company has passed theISO9001 qualitymanagement systemcertification. Themainbusiness scope encompasses intelligent equipment manufacturing, research anddevelopmentofintelligentrobots, andCNCmachinetoolproduction.Our expertise encompasses manufacturing, technical solutions,and a variety of service offerings.Wealso handlediverse projects. Thecompanyis equippedwith perfectand advancedtestingequipment, ensuring our assemblyprocessesareheld tothe highest standards. Each machine undergoesover 48hoursof uninterruptedactualoperation forinspection and record-keeping.The main products of the company have successfully penetrated core manufacturing sectors of key industries such as automobile manufacturing, national defense, aerospace, rail transit, hardware, and mold production.
Detailed Photos
1. The machine guideways are precisely ground, ensuring exceptional wear resistance and high precision.
2. The spindle features a single spindle variable frequency speed; Two axes and two gears also operate with variable frequency speed.


Specification

Machine Type	Unit	CK6140	CK6150
Maximum workpiece rotation diameter on the bed	mm	400	500
Bed width	mm	360	400
Max swing over cross slide	mm	200	290
Max length of work piece	mm	1000(850)/1500(1350)	1000(850)/1500(1350)
Spindle bore	mm	φ52	φ82
Spindle taper		MT5 ISO (GB)A2-6	MT6/1:20(A2-6/A2-8)
power of the main motor	kw	5.5	7.5
Cooling motor power	w	125	125
Spindle speed	rpm	100-1600
X axis rapid movement speed	mm/min	6000
Z axis rapid movement speed	mm/min	8000
Feed Speed Range	mm/min	X:1~2000 Z:1~2000
Tool positions of the turret	mm	200×200/4/6/8	200×200/4/6/8
Diameter of the tailstock	mm	φ65	φ75
Working travel of the tailstock	mm	140	130
Taper of the tailstock		MT4	MT5

Strict Quality Control
Natural Aging Process: The natural aging technique ensures optimal durability and performance of our products. Advanced Treatment: Our state-of-the-art treatment processes enhance precision and reliability. Precision Casting: Expert casting methods guarantee superior quality and consistency.
1.Exquisite Workpiece Display: Our products showcase refined craftsmanship and meticulous attention to detail.
2.Rigorous Testing Process: Multi-layer testing before delivery ensures every machine meets rigorous standards of excellence.
Certifications
Exhibition Photos: Take a visual journey through our impactful presence at leading industry exhibitions.
Configuration: Discover the sophisticated setup that powers the High Precision CNC Machine Tool CK6150, ensuring unparalleled performance.

KND controller system	Water Tank cooling device
Automatic lubricating device	Outer protective cover
Spindle taper hole air blowing device	Handheld air gun
Electric cabinet heat exchanger	Working light
Three color warning light	RS-232 Standard output interface
Tools & tool box	Operation Manual

Optional Configuration: Customize your High Precision CNC Machine Tool CK6150 with our wide range of optional configurations to meet your specific needs.

Automatic tool changer (Armless type or Arm type)

Spindle oil cooling device

High speed spindle

Spindle center water outlet unit

Chain chip conveyor/Spiral chip conveyor

Disc type oil water separator

Electric cabinet air conditioning

---
