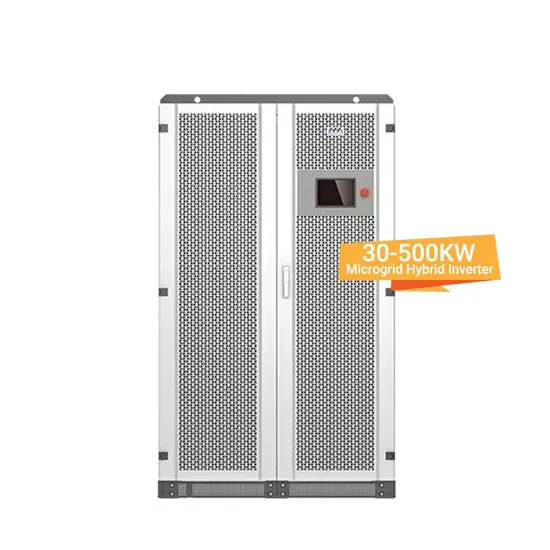

Megarevo Mps Microgrid Series Commercial 30kw 50kw 100kw 250kw 500kw Three Phase Hybrid Inverter

Product Description

Product Description
Specification

High Power Hybrid Solar Inverter Megarevo 500KW 250KW 150KW 50KW 30KW Solar Panel System
Model	MPS0030	MPS0050	MPS0100	MPS0150	MPS0250	MPS0500
AC(grid-connected)
Rated power	30kW	50kw	100kw	150kw	250kw	500kW
Rated current	43A	72A	144A	217A	361A	722A
Voltage range	320V-460V
Rated frequency	50/60Hz
Frequency range	45-55/55-65Hz
THDI	<3%
PF	0.8lagging-0.8leading
AC connection	3W+N+PE
Transformer	Yes
AC(off-grid)
Apparent power	33KVA	55KVA	110KVA	165KVA	275KVA	550KVA
Rated power	50KW	50KW	100KW	150KW	250KW	500KW
Rated Voltage	400V
Rated Current	43A	72A	144A	217A	361A	722A
THDU	≤ 2% linear
Rated frequency	50/60Hz
Overload capability	110%-10min120%-1min
PV
Max. PV open-circuit voltage	1000VDC
Max Power	60/120KW		120/180/240KW		300/360KW	600/660/720KW
PV MPPT Voltage Range	220-850V
MPPT Number	1/2		2/3/4		5/6	10/11/12
Battery
Battery Voltage	150V-850V		420V-850V		500V-850V
Battery Full Loading Operation Volaage Range	150V-850V		420V-850V		500V-850V
General data
Dimension(WXDXH)	800X800X1900mm		1200X800X2050mm		1800X800X2050mm	2800X800X2050mm
Weight	440kg	620kg	900kg	1250kg	1700kg	3520kg
Environmental temperature	-25ºC~+55ºC
Relative humidity	0-95%non-condensing
Protection degree	IP20
Noise emission	75dB(A)@1m
Max.imum altitude	5000m(derate over 3000m)
Cooling	Forced-air
Communication
Display	Touch screen LCD
Communication interface	RS485/CAN

System Architechture
1. Hybrid Inverter is a high-quality inverter which can convert solar energy to AC energy and store energy into battery. 2. The inverter can be used to optimize self consumption, store in the battery for future use or feedin to public grid. Work mode depends on PV energy and user's preference. It can provide power for emergency use during the grid lost by using the energy from battery and inverter (generated from PV). In addition, the parallel function is available(of grid model). Project Cases
Package and Delivery
FAQ 1: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, power wall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
2: Are you a factory or trading company?
We are a factory with more than 20 years of experience in producing solar energy series products,welcome to visit our factory.
3: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
4: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
5: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
6: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately
If you want to know more information, you can send inquiry to our team, we will cover more details.

---
