Accurl QC12y-6X2500 CNC Hydraulic Shearing Machine with Rexroth Pump

US$11,500.00
1 Set
US$9,500.00
2+ Sets

Basic Info.

Model NO.
QC12Y-6/2500
Condition
New
Warranty
3 Years
Cutting Material
Carbon Steel, Aluminum, Stainless Steel
Type for Cutting Machine
Hydraulic Cutting Machine
Type for Fold-Bending Machine
CNC Fold-Bend Machine
Application
Machinery & Hardware
Type
Press Brake
Type for Pipe and Tube Bending Machine
Hydraulic Press Brake
Transport Package
Packaging
Specification
CE & SGS
Trademark
ACCURL
Origin
Anhui Maanshan
HS Code
846239900
Production Capacity
255 PCS/Year

Product Description

Accurl QC12y-6X2500 CNC Hydraulic Shearing Machine with Rexroth Pump
Product Description
Accurl Hydraulic Swing Beam Plate Shearing MachineACCURL MS7 Hydraulic Swing Beam Shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality. More than just cutting; NC MS7 is developed by expert engineers of ACCURL reflects innovative technology with all aspects of it.
Standard Equipment:
1. Wear resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge.
2. Portable foot pedal is eligible for single and automatic cutting.
3. ESTUN E21s NC controller System.
4. NC controlled motorized backgauge system.
5. 600 mm motorized back gauge system with 0.1 mm accuracy.

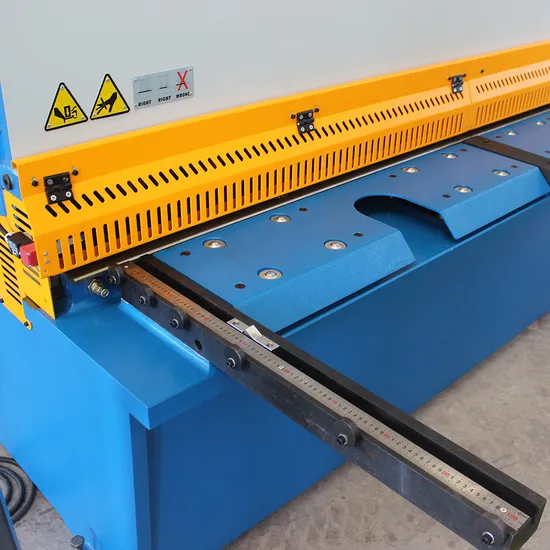

6. Front support arms with T slot, ruler and flip stop.
7. Squaring arm.
8. Scales with metric and inches.
9. Cutting line illumination and shadow line.
10. Central lubrication system.
11. Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
12. Rear sliding plates.
13. Front sliding plates with ball bearings on the table.Detailed Photos
MACHINE DESIGNACCURL Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.
Feature:
* The machine welding is made by welding plant and welding robots. * After the welding,we make stress relief process by vibration system. * After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.* Allreference surfaces and connection holes are machined. Main Features
Name: SHEET PRESS CYLINDERS
Brand: ACCURL
Original: ACCURL
The ACCURL® cnc hydraulic shearing machine is equipped with cylinders which press on the metal sheet with an automatically regulate-able pressure which varies according to the pressure required by the thickness and consistency of the material to be cut. Machine Parts Name: HYDRAULIC SYSTEM
Brand: ACCURL
Original: CHINA
The ACCURL® cnc hydraulic shearing machine is equipped with a hydraulic system capable of simplifying the operator's work enormously and to facilitate all the adjustments necessary for obtaining the best quality cut. Made up of the highest quality, all European, components, the hydraulic unit is a guarantee of long life for the machine as.CNC CONTROL UNIT
* 7" widescreen TFT Colour LCD display * Back / front gauge control
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system. DAC360T CNC Control UnitACCURL has chosen the very powerful new generation DELEM DAC360T offers an higher level of efficiency in programming and control of guillotine. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.
TypeCut Thickness
mm
Cut length
mm
Shear Angle
Degree
SPM
min-1
Back Gauge
mm
Throat Depth
mm
Main Motor
kw
MS7-4×2500425001°30'≥ 226001005.5
MS7-4×3200432001°30'≥ 186001007.5
MS7-4×4000440001°30'≥ 126001007.5
MS7-6×2500625001°30'≥ 166001207.5
MS7-6×3200632001°30'≥ 126001207.5
MS7-6×4000640001°30'≥ 106001207.5
MS7-6×6000660001°30'≥ 760012011
MS7-8×2500825001°30'≥ 146001207.5
MS7-8×3200840001°30'≥ 126001207.5
MS7-8×4000832001°30'≥ 1060012011
MS7-10×32001032001°50'≥ 1260012011
MS7-10×40001060001°50'≥ 660012018.5
MS7-12×2500122500≥ 1080017018.5
MS7-12×3200123200≥ 980017018.5
MS7-12×40001240001°80≥ 880017018.5
MS7-12×600086000≥ 480032030
MS7-16×25001625002°9'≥ 980031518.5
MS7-16×3200163200≥ 880032018.5
MS7-16×4000164000≥ 720-100032018.5
MS7-16×6000166000≥ 420-100032022
MS7-20×32002032002°30'≥ 5100032030
MS7-20×60002060002°30'≥ 4100015055
MS7-25×2500252500≥ 5100032537
MS7-25×3200253200≥ 5100032537
MS7-32×25003225003°30'≥ 4100035045
MS7-32×32003232003°30'≥ 4100035045
