Basic Info.
Model NO.
HDWS-772MD151MLP-AI
Applicable Model
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine
Shell Material
ABS Plastic
Display Type
Reverse Image
Function
Night Vision, Waterproof, Dustproof, Shockproof
Monitor Display
7-Inch IPS HD Screen
Receiving Distance
up to 200m Clear Line of Sight
Display Mode
Single-Screen/Double-Screen
Ai Camera Resolution
720p
System Operating Voltage
DC8-32V
Transport Package
Color Box
Trademark
Veise/Customized
Production Capacity
50000/Month
Packaging & Delivery
Package Size
105.00cm * 178.00cm * 50.00cm
Package Gross Weight
2.000kg
Product Description

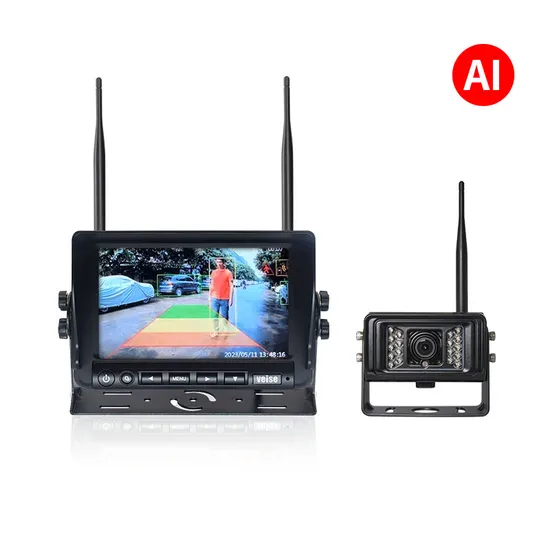

AI Pedestrian & Vehicle Detecting Wireless Backup Camera System for SUV Truck Agricultural Engineering Sightseeing Safety Surveillance Features: This AI-powered HD wireless backup camera system with 0.5T processing power ,AI-based automatic pedestrian and vehicle detection features ,Widely used in vehicle blind spot detection(BSD) monitoring .7-inch wireless monitor offering both single and split-image display options, AI-based customizable warning area settings. built-in buzzer with a three-level safety audible and visual alarm, it wirelessly auto controls the camera's power supply for energy-saving modes. The system uses multi-frequency hopping for automatic pairing, anti-interference, and offers a clear transmission range of Up to 200m Clear Line of Sight AI HD Wireless Camera:
Automatically monitor pedestrain and vehicle warning,and the blind area monitoring (BSD) function. Automotive industry grade DSP millions of HD pixels, starlight full-color, IP69K waterproof grade, suitable for all-weather working. 7-inch IPS Screen Wireless Monitor:
Single screen + 2 divided screen switching Customizable setting of the screen warning area (adjustable up and down, left and right). Built-in display with an early warning microphone, superimposed with a three-level alarm identification frame, and adapted to different application scenarios. Multiple frequency point frequency hopping automatic code matching, anti-carrier frequency interference, and open transmission distance of 200 meters. The display wirelessly synchronously controls the standby and working power voltage of the wireless camera (power-saving mode). Product Parameters
7-inch HD wireless monitor(MWHD-1012MTP-AI) |
Colored LCD | 7-inch IPS HD screen |
Wireless Receiving | built-in 2.4G wireless receiver |
Resolution | 1024RGB(H) X 600(V) |
Visible Angle | up, down,left, and rigtht:85° |
Operating Frequency | 2400~2483.5MHz |
Receiving Sensitivity | ≤86dBm |
Transforming Distance | open distance≤200 meters |
Standard | PAL/NTSC |
Display Mode | suppport single-screen/double-screen display |
Pedestrian and Vehicle Detecting | alarm after pedestrian and non-motor vehicle approaches the area |
Area Warning Calibration | customizable adjustment of the warning zone |
Anti-vibration Grade | GBT 2423.56-2018 standard (random 5G vibration) |
Operating Temperature | -20ºC~+70ºC |
Storage Temperature | -30ºC~+80ºC |
Operating Voltage | DC8-32V |
Outer dimension (L x W x T) | 220mm X 150mm X 85mm |
Installment way | 360° universal base car bracket |
wireless HD Waterproof Camera (CWHD-151M-AI) |
Effective Pixels | 1920(H) X1080(V) |
Resolution | 720P |
Wireless Transmission | built-in 2.4G wireless transmitter |
Transmission Power | 18dBm |
Operating Frequency | 2400~2483.5MHz |
Trasmission Distance | open area≤200 meters |
Visible Angle | 130° |
Waterproof Grade | IP69K |
Pedestrian and Vehicle Detection | support AI human shape and car type recognition |
Power-saving Function | can be used with the matching power box, and the standby current is as low as 10mA |
Anti-vibration Grade | meets GB/T2423.56-2008 standard |
Operating Temperature | -20ºC~+60ºC |
Storage Temperature | -30ºC~+70ºC |
Operating Voltage | DC8-32V |
Outer Dimension(L x W x T) | 91.6X75X71(mm) |
