US$90,000.00-130,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO9001
Automatic Grade
Automatic
Working Material
Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO
Yield Strength
345-550MPa
Cutter Material
Cr12MOV, Heat Treatment
Decoiler
Hydraulic Automatic Decoiler
Applilcation
Light Steel Frame House
Production Capacity
600 Sets/Year
Product Description
OVERVIEW

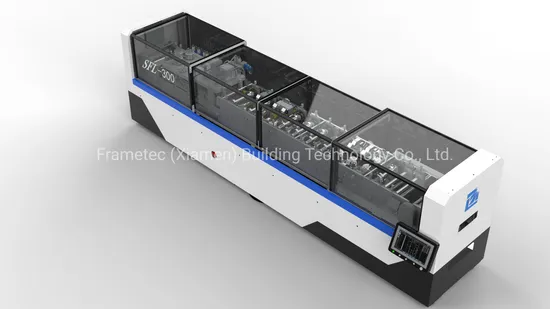

The LG300 Floor Joist Light Steel Frame Machine is a highly versatile member of the FrameTec manufacturing system. Designed to offer increased production speed, greater flexibility and increased reliability, theLG300 Floor Joist Light Steel Frame Machine is best suited for residential and light commercial projects. Producing profiles from 135mm to 305mm up to 2.50mm thickness.
SF300 Light gauge steel framing machine is suited to construct walls, floors and roofs for 1 - 6 level residential, modular and transportable units, and light commercial construction.
Machine Equipment
1. Specifications
The LG300 Floor Joist Light Steel Frame Machine is a highly versatile member of the FrameTec manufacturing system. Designed to offer increased production speed, greater flexibility and increased reliability, theLG300 Floor Joist Light Steel Frame Machine is best suited for residential and light commercial projects. Producing profiles from 135mm to 305mm up to 2.50mm thickness.
SF300 Light gauge steel framing machine is suited to construct walls, floors and roofs for 1 - 6 level residential, modular and transportable units, and light commercial construction.
Profile Shape | C Shape |
Profile Size | 300 mm |
Material Thickness | 1.2-2.2 mm, G300-G550 Zinc-Alum Steel Coil |
Operation System | 21 inches Touchable Screen |
Production Control System | Self-devoloped FrameTec LGS machine Controlling Software |
Design Software | Vertex BD from Finland |
Comprehensive Machine Speed | Joists: 500 m/hr |
Max. Machine Speed | 2,150m/hr |
Power Supplier | 380V, 50Hz, 3Phrases, can be customized |
Hydraulic Coolant System | Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling |
Punching, Cutting Mould | Service Hole, Web Bolt Hole, Dimple, Web Notch, Chamfer, Lip Cut, Swage, Shear. |
Hole Punching Accuracy | ± 0.5 mm |
Decoiler | 6000 kgs,auto decoiling |
2. Machine Main Features
Classical LGS machine models for 6+ years, very stable and with high speed production speed | The LG300 produces floor joists for residential and light commercial building quickly economically |
Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists | An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 1.2 -2.2mm |
High line speed results in the accelerated cold formed steel framing and truss manufacturing output | Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency |
High line speed results in the accelerated cold formed steel framing and truss manufacturing output | Self developing control system base on the market feedback that can meet your requirement well & with good after sales support |
Machine Details
Working Flow:
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table
Machine details:
Profile Effect & Application
Design Software & Production System
(International leading brand for LGS construction design)
Our Factory
Why Choose FrameTec
FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.
For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All our machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses and Floor Joists in:
Residential and Commercial buildings
Steel framed systems for modular & prefabricated buildings
Walls framed for low and high rise buildings
Walling, floors, beams, roofing, kitchen & bathroom pods
Storage, recreational, transportable dwellings
>>
