11ax 1800Mbps 5g CPE with SIM Support Tr069, Ipv6, VPN Mesh 5g

US$1.00-150.00 1 Piece (MOQ)

Basic Info.

Model NO.
KS-5G-XM530
Transfer Rate
10/100/1000Mbps
Firewall
Firewall
Ports
≤4
Port Structure
Not Modular
Application
SOHO
Network
5g/LTE/WCDMA
Performance
Line-Rate Router
Architecture
Single Bus Symmetric Multi CPU
5g
Sub-6 Nsa and 5g Na
5g Speed
Nsa: Max. 3.2gbps(Dl)/500Mbps(UL);
5g Band
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78
4G/3G
Support
CPU
Qualcomm Sdx62
Wi-Fi
11ax Wi-Fi6
Wi-Fi Frequency
2.4GHz and 5.8GHz
Wi-Fi Speed
1800Mbps Data Rate
Interface
RJ45/Rj11/Wps/DC/Usim
Tr069
Support
Ipv4/Ipv6
Support
SMS
Support
VPN
Support
Guest Network
Support
Parental Control
Support
Transport Package
Box
Specification
11ax 1800Mbps wireless data rate, dual band
Trademark
OEM/ODM
Origin
China
HS Code
8517623690
Production Capacity
15000PCS/Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
2.000kg

Product Description

11ax 1800Mbps 5G CPE with SIM support TR069, IPv6, mesh,support Router/5G, support VPN, IPv6,Guest Wi-Fi, Parental control, SMS, Phone book, Guest network, WPA3

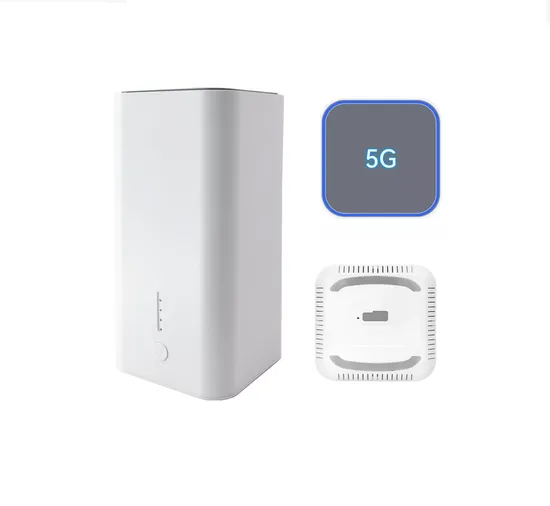

Product Description KS-5G-XM530 is an high speed 11ax Wi-Fi6 standard 5G router with SIM card slot,Qualcomm chipset, dual band, maximum 3.4Gbps in 5G speed, plug and play, satisfied with growing-up high speed mobile connections requirements and provides the fast speed beyond your imagination.
Main Features:
Multiple Mobile Network Compatible
Support 5G NSA+SA, 4G LTE-TDD+LTE-FDD, 3G WCDMA mobile networks;
Compatible global bands, support all SIM cards
Plug and play but more powerful
Plug and play, no wiring, can be installed anywhere in the room, keep the room tidy;
Compared to 5G hotspot, this 5G CPE is allow 50+users to access and enjoy the high speed, more powerful
5G throughput is more than 750Mbps,almost 10x faster compared 4G network
It is 750Mbps+ when tested in Quectel office, 680Mbps in Kazakhstan, 562Mbps in our office, nearly 150Mbps higher than some famous branded 5G CPE.
The latest 802.11ax Wi-Fi6 standard, the wireless speed is 1800Mbps
Combined 2.4G and 5.8G SSID together, 5.8G first, allow users connect to the fastest wireless signal always
Better Signal, more wireless range
There is large space on the housing to install the 5G and Wi-Fi antenna, more gain and less interference; More than 150Mbps data rate in 35 meters distance with one wall;
Standing design, beautiful and generous appearance, comfortable hand feel, easy operation
Multiple application environment
Support VPN L2TP/PPTP, easy to achieve VPN remote control;
Besides home use, this 5G CPE is publicly used in office, banks, chain stores, outdoor camping etc.
Detailed Photos

Product Parameters
Hardware Spec:
Model KS-5G-XM530
WiFi Standard IEEE 802.11b/g/n/ac/ax
CPU MT7621DAT+MT7905N+MT7975DN
Flash 16MB
Memory 256MB DDR3
Frequency 2.4G: 2400 - 2484MHz
5.8G: 5150 - 5850MHz
Data Rate 600Mbps @ 2.4GHz; 1200Mbps @5.8GHz
RF Power ≤ 21dBm
Access Users 100+ Clients
Interface 2* 10/100/1000Mbps LAN
(Optional: 1*RJ11 port optional to support VoLTE, 1*10/10/100/1000Mbps LAN port)
1*10/100/1000Mbps WAN
Button Reset button
WPS Button
SIM 1*SIM card slot for 5G SIM card
Switch LED Switch
LED Indicator 4G
5G
WIFI
Power
ETH
Antenna Build in 5dBi MIMO Antenna
Power Consumption <20W
DC Power Supply 12V/2A
MTBF ≥52,560H
Working temperature Working Temperature:-20ºC~55ºC
Storage temperature: -30ºC~70ºC
Humidity 5%~95%
Dimensions 108mmX108mmX216mm
4G/5G Speed
5G Chipset Qualcomm X62 (Global Version)
4G/5G Band 5G: SA &NSA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; LTE-TDD: B34/B38/B39/B40/41/B42/B43/B48
WCDMA:B1/B2/B4/B5/B8/B19
4G/5G Speed NSA TDD: Max. 3.4Gbps(DL)/550Mbps(UL); SA TDD: Max. 2.4Gbps(DL)/900Mbps(UL); LTE: 1.6Gbps(DL)/200Mbps(UL);UMTS: DC-HSDPA:42Mbps(DL) DC-HSUPS:5.76Mbps(UL);
5G Chipset Qualcomm X62 (Europe/Middle East/Brazil/Africa Version)
4G/5G Band 5G: SA &NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71; LTE-FDD: B38/B40/B41/B42/B43; WCDMA:B1/B5/B8
4G/5G Speed NSA TDD: Max. 3.4Gbps(DL)/550Mbps(UL); SA TDD: Max. 2.4Gbps(DL)/900Mbps(UL); LTE: 1.6Gbps(DL)/200Mbps(UL);UMTS: DC-HSDPA:42Mbps(DL) DC-HSUPS:5.76Mbps(UL);
Firmware Features
Operation mode Router/5G
Multiple Functions 2.4G SSID and 5.8G SSID combined together, support 5.8G first always
Support SSID hidden
Support SMS, Phone book, QXDM tool
Support DDNS
Support Guest Network and Parental Control
VPN VPN Client (L2TP PPTP)
Security Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3
TR069 Support
IP Protocol IPv4/IPv6
Device Management GUI web management
Support firmware back-up, restore, reset, upgrade
Packing List
KS-5G-XM530*1
Power adapter×1(12V2A)
Cat 6 LAN Cable×1(1 meter)
User Manual×1

Packaging & Shipping 12PCS/CTN
Weight: 9.6KGS/CTN
CTN size: 59*50*23cm
After Sales Service Two years warranty
FAQ Q1. 5G bands:
A: Right now it can support global bands or locally bands;
We suggest to select the one which can meet with local bands as samples;
In the mass orders, we can customize the 5G bands if QTY large to save cost and increase the quantity;
Q2. OEM & ODM service
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package; Content will be limited by MOQ; ODM: we can provide PCBA, housing and firmware ODM service: PCBA: 2~3 month to finish it; Housing: 2 month after finish the PCBA; Firmware: we can provide the open source driver for customer to develop their firmware; We can provide DTS files if want; And we can provide technical support in customer firmware development.
Q3. If support out of China production: A. Yes, this is developed by our engineers, we can support SKD and CKD; We can provide the SOP of assemble and finished product testing; But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem; We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.
