Basic Info.
Model NO.
ZWB5030 ZWB5040 ZWB5050
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Max. Drilling Capacity
30mm
Packing Size
96*50*195 Cm
Transport Package
Plywood
Specification
96*50*195 cm
Production Capacity
200unites/Month
Product Description
Product Description
Technical parameter :
Feature :
Spindle auto feeding
Threading function
Tilting rotary table -45 to + 45 degree
Drilling depth indicator
Electronic spindle and feed rate indicator
High spindle rigidity
Threading by automatic switching of the left turns
Left turn switch
Headstock, column, table and column base made of the highest quality components
Spindle and transmission shafts of hardened and heat treated steel
Top-class electric motor
A large spindle stroke

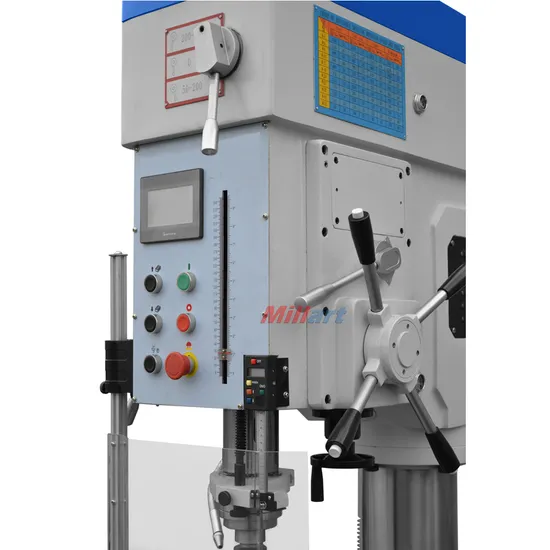

Readable control panel
Working table automatically lifted with 360 rotation and assembly grooves
Technical parameter :
Model | ZWB5030 | ZWB5040 | ZWB5050 |
Max drilling capacity | 30 mm | 40 mm | 50 mm |
Max threading capacity | M20 | M27 | M30 |
Column diameter | 120 mm | 160 mm | 180 mm |
Spindle stroke | 135 mm | 180 mm | 240 mm |
Distance from spindle to column | 320 mm | 360 mm | 360 mm |
Distance from spindle to table | 540 mm | 570 mm | 540 mm |
Distance from spindle to base | 1110 mm | 1160 mm | 1130 mm |
Spindle taper | MT4 | MT4 | MT5 |
Spindle speed | 50-300/300-2500 r/min | 50-250/250-2500 r/min | 50-200/200-2000 r/min |
Spindle feed rate | 21-213 mm/min | 18-183 mm/min | 20-204 mm/min |
Table size | 420 x 360 mm | 470 x 390 mm | 470 x 390 mm |
Base size | 400 x 390 mm | 450 x 460 mm | 450 x 460 mm |
Main motor power | 1.5 kw | 2.2 kw | 3.0 kW |
Feed motor power | 90w | 90w | 90w |
Coolant motor power | 40 w | 40 w | 40 w |
Weight | 510/560 kg | 690/745 kg | 845/905 kg |
Packing size | 96x50x195 cm | 117x68x233 cm | 117x68x239cm |
Sandard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice 160mm Company information:
