Gumming Embosser Kitchen Paper Making Machinery

US$35,000.00-60,000.00 1 set (MOQ)

Basic Info.

Certification
CE, ISO 9001:2000
Condition
New
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Rubber Roller
Toilet Paper Type
with and Without Core
Function
Multi-Function
Transport Package
Film Package with Woden Bottom
Specification
CP-GS-1575
Trademark
Champions
Origin
Quanzhou
HS Code
8441809000
Production Capacity
1.5-3t/Day

Product Description

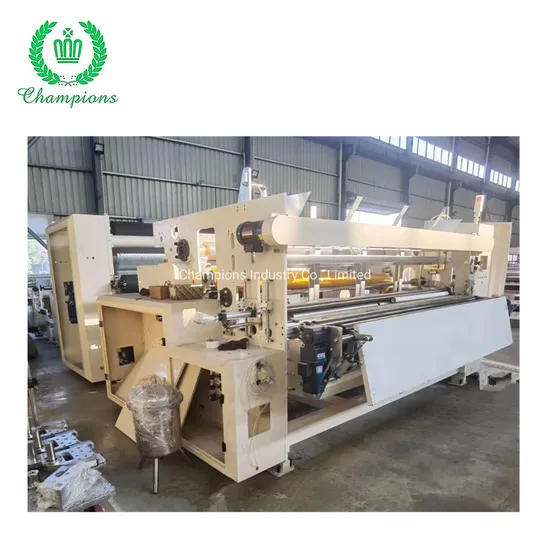

Gumming Embosser Kitchen Paper Making Machinery
Product Description Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Function and Features:
1. Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Product Parameters
Jumbo Roll Max Width 1350~2850 mm
Jumbo Roll Diameter Φ1100mm
Jumbo Roll Inner Diameter 3inches(76.2mm)
Finish Product Diameter Φ90-φ280 mm
Finish Product Inner Diameter φ38-φ76.2mm
Perforation Distance 100-150mm, 200-300 mm
Production Speed 0-230m/min
Parameter Set HMI, Touch Screen
Pneumatic System 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Total Power 7.5-15KW
(depends on model and configuration)
Unwind Stands 1-3 Stands
Unwinding Transmission Variable Stepless Speed Regulation
Rewinding Unit With Core or Coreless
Dimension 7800X3000X1720mm
Weight 3500~4500kg
Detailed Photos
Packaging & Shipping
Company Profile
Champions Corporation is professionally manufacturing and supplying all raw materials for disposable hygiene products and also including comprehensive consulting for the hygiene machinery project.
Since 2002, we started our first production line for disposable hygiene products, through decades of development; our business includes manufacturing baby diaper, lady napkin, adult diaper and supplying all raw materials for hygiene products. We build up our reputation in domestic market and cooperate with some long-lasting customers overseas.
And for tissue paper machines, our factory have more than 20 years development history, we are professional on all kinds of tissue paper processing machines including Toilet Paper and Kitchen Towel Rewinding Machine, Facial Tissue Making Machine, Hand Towel Folding Machine, Napkin Machine, Pocket Tissue Machine and relevant cutting machine and packing machine. We export more than 200 sets machine to over 20 countries every year. We upgrade our technology and expand our scale step by step.
Quality first and client first are always the objects we peruse.
Hope to start a bright future with you!
Our Advantages Professional Engineer
Our factory is more than 20 years, we witness the development of tissue paper processing machines.
As a result, we have a lot of experienced engineers, to design machine according to client's requirement, and make sure each machine working perfectly.
We persue good machine quality, we keep research new technology and upgrade the machine better and better.
Professional Sales
As we have our own factory, our sales knows the machine very clearly, we can explain every details no matter you are familiar or not to these machines.
We give professional solutions to meet different client's requirements. You will always find one happy solution to start your business here.
And we welcome clients visit our factory, and we will give you transportation tips before you come, and arrange car to pick you from train station or airport.
Good After-sales Service
Customers' satisfaction is always our best feedback, we put client in the first place. We have 24 online service, 7 days. And we always give fast response to solve your confusion.
During all machine lifetime, we guarantee good after-sales service. Machine is high value product which can use for years, no matter you meet machine small problems or you need to buy machine spare parts, you can come to us. You buy our machine, you have our back on.

FAQ 1. Are you factory manufacturer?
A: Yes, we are factory manufacturer, our factory history has been more than 20 years, and welcome to visit my factory when you come to China.
2. How long is your Warranty?
A: Our machine warranty is ONE year guarantee but machine after-sales service is all machine lifetime.
Within ONE year warranty, for the main machine spare parts like PLC, Motor have damage not by manmade, we will courier the spare parts immediately for free.(not including easy-wear spare parts like blade)
After ONE year warranty, we will still provide after-sales service, but if need to courier spare parts, client needs to cover the cost.
3. What about the machine installation?
A: All our machine will testing before shipping, and the testing cost is for free, then we take apart the machine to several packages for shipping. We have engineer overseas service, if you don't have any machine experience, we can send engineer to your place to install the machine and train your workers, for this service, client need to cover its cost.
4. What's the payment terms?
A: 30% deposit by T/T, and pay the balance after machine testing before shipment by T/T.
5. What's the delivery time?
A: Almost all the machine start production after ordered, so machine delivery time is about 60 days, for urgent needs please check with sales if have ready stock or make it faster.
