US$37.50
1,000-4,999 Pieces
Basic Info.
Ningbo, China
0.5m/1m/1.5m or Customized
Material
0.8mm Cold Rolled Plate
Length of Output Cable
0.5m/1m/1.5m or Customized
Housing Material
Stainless Steel
Endface of Connector
Sc/FC/LC/St
Operation Temperature
-50-85 Degree Centigrade
Keywords1
Fiber Patch Panel
Keywords2
Patch Panel Fiber Optic
Keywords3
Fiber Optic Patch Panel
Transport Package
Individual Box or According to Customer
Production Capacity
800000 PCS/Month
Packaging & Delivery
Package Size
40.00cm * 30.00cm * 20.00cm
Package Gross Weight
2.000kg
Product Description

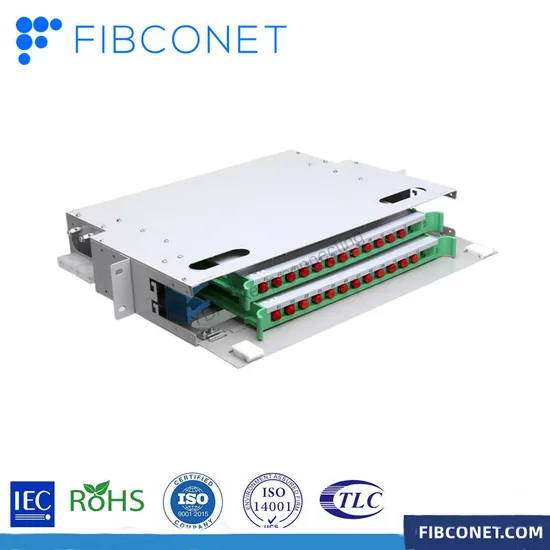

High Quality Drawer Type 12 Port 19′ Idu Idf Rack Mount Sc Fiber Optic Patch Panel ODF
Description
The fiber optic patch panel is an integrated unit for fiber management, Fibconet offers wall mounted fiber optic patch panel and rack mounted fiber optic patch panels, This equipment's function is to fix and manage the fiber optic cables inside the box as well as provide protection. There are different models to fit 12-core fiber, 24-core fiber, 36-core fiber, 48-core fiber, 72-core fiber, 96-core fiber, and 144-core fiber applications. They can be with different adapter interfaces including the SC, ST, FC, LC MTRJ, etc. related fiber accessories, and pigtails are optional.Product Features:Standard size, lightweight, and reasonable structureSplice tray inside changeable19-inch standard size, light in weight, and robust structureSuitable for ribbon and single-fiberVarious panel plates to fit different adapter interface The front mark on the plate is easy to identify and operateApplications:
LAN, WAN, and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, UPON
Fiber Optic Test Equipment
Database Transmit Broadband Net Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD-T2000.1-2009
RoHS
Fiber Capacity of panel | 12-144 core(12 24 48 port usually) |
Panel Connector | SC LC ST FC |
Type | Sliding Fixed |
Dimension | 19'' 1U/2U/3U/4U... |
Material | Cold Rolled Steel or Aluminum |
Storage Temperature | -45~+65ºC |
Thickness | 1.0 1.2 mm |
1.0 1.2 mm | Cable ties, mounting ear screws, and spiral wrap tube |
Company Profile
Q: The History of our factory?
A: In 2000, Fibconet started our adapters business first and accumulated
funds, then we started producing jumpers in 2006. In 2009 We developed
the splitter workshop. The sales volume exceeded 15 million US dollars
in 2015. In the same year, we began to explore foreign markets.
Q: What kind of package do you usually apply for?
A: We usually use cartons, but they also can be customized
Q: Warranty policy?
A: Fiber Equipment Warranty Notice Warranty period:24months after buying, Generally, there are no questions for application in 20 years.
>>
