Basic Info.
Model NO.
JR59, JR69, JR80, JR1000
Controlling Mode
Hydraulic Semi-automatic
Automatic Grade
Semiautomatic
After-sales Service
1 Year
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
After Warranty Service
Support Online Support
Key Words
Wood Saw Machines Woodworking
Transport Package
Wooden Case
Specification
4M*1.8M*1.2M
Trademark
IERUI MACHINERY
Packaging & Delivery
Package Size
400.00cm * 170.00cm * 200.00cm
Package Gross Weight
500.000kg

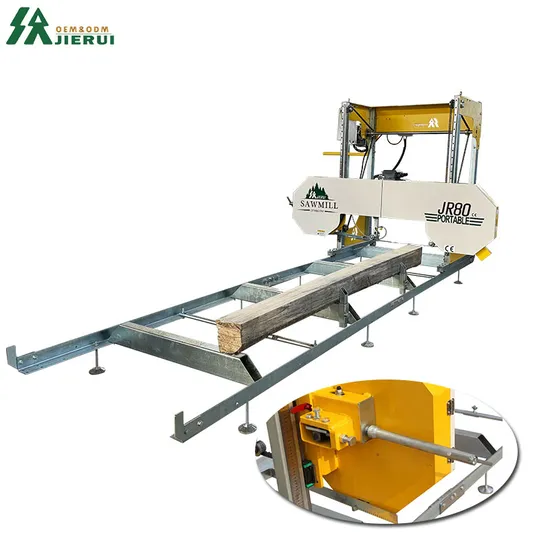

Product Description
Contact us and you will receive a free brochure.Packed with product information, inspiration, and more ways to Live the Wood Life with Jierui Machinery Equipment Co.,Ltd.
Product parameters
Sawmill parameters
| JR59
| JR69
| JR80
| JR1000
|
Max Log Cutting Dia(cm)
| 60
| 70
| 92
| 105
|
Max Log Cutting Dia(inch)
| 24
| 28
| 36
| 41
|
Max Log Cutting Length
| 3.5m
| 3.5m
| 3.5m
| 3.5m
|
Track Length
| 4m
| 4m
| 4m
| 4m
|
Motor Power
| 5.5KW/18HP
| 5.5KW/18HP
| 7.5KW/18HP
| 11KW/27HP
|
Engine power
| Electricity/Gasoline/Diesel
| Electricity/Gasoline/Diesel
| Electricity/Gasoline/Diesel
| Electricity/Gasoline/Diesel
|
Packing Size
| 2.1m*1m*1.5m
| 2.1m*1m*1.6m
| 2.1m*1m*1.76m
| 2.1m*1m*1.76m
|
Voltage Options
| 220V/380V
| 220V/380V
| 220V/380V
| 380V
|
Saw Wheel Diameter
| 450mm
| 450mm
| 500mm
| 500mm
|
Blade Size
| 3300*35*0.9mm
| 3500*35*0.9mm
| 4200*35*0.9mm
| 4200*35*0.9mm
|
Lifting
| manual
| manual
| manual
| manual
|
Walking
| manual
| manual
| manual
| manual
|
Safe cutting Speed
| 6m/min
| 6m/min
| 4m/min
| 4m/min
|
Dimension
| 4m*2.5m*1.8m
| 4m*2.5m*1.8m
| 4m*2.5m*1.8m
| 4m*2.5m*1.8m
|
Weight
| 500kg
| 550kg
| 650kg
| 770kg
|
Warranty
| 1 year
| 1 year
| 1 year
| 1 year
|
Color customization
| Supported
| Supported
| Supported
| Supported
|
Logo customization
| Supported
| Supported
| Supported
| Supported
|
Product Description
Application:
It is suitable for the scale production of sawmill and is widely used in wood processing in the original forest area.
Features:
1.Hand forward and backward,hand lifting.
2.Power is gasoline engine/electric motor
3.It is also effective for hardwood
Advantage:
1.The machine has the features of high cutting speed,high cutting rate,high quality of final,Saw road thickness is only 0.9mm product,great reduce the lost of sawdust.
2.It is simple installation, easy operation, labor saving , and high productivity.
3.simple , safe and pro-environment;
4.Automatic control the timber thickness, high-precision.
5.High cutting efficiency, smooth; high flatness of the cutting plate;
6.The thickness of processing wood can be adjusted according to your need
7.There's no need the professional sawyers, the ordinary workers can operate the machine expertly.
From the details,where are our advantages
1.About lifting system
Other Our
Other:1.Steel wire rope is used for lifting and easy to wear.
2.Sudden interruption will lead to great security risks.
3.Pulley design is adopted,the structure is complex,and there may be more fault points.
Our: 1.Chain design,simple structure and convenient replacement.
2.The sprocket rotates with a bearing,which is not easy to wear,It has been tested without fault after 30000 times of lifting and lowering
2.About lift rails
Other Our Other:1.The lifting track adopts hard friction which is easy to wear, the lifting is not smooth,and it is easy to get stuck. 2.The saw wheel needs to be adjusted on four sides,which is difficult to adjust.
Our: 1.Saw blade lifting adopts linear guide rail with double sliding blocks. 2.Smooth lifting,no jamming,high sawing precision and better stability blade lifting adopts linear guide rail.
3.Single screw adjustment,simple and convenient.
3.About lifting power unit
Other Our
Other:1.Mechanical locking device through pin shaft and wheel disc. 2.The size adjustment is not accurate enough.
3.The pin shaff is easily worn due to vibration,resulting in potential safety hazards.
4.Lifting of sawing machine is more laborious.
Our:1.Adopt reducer for lifting ,stable and labor-saving. 2.The reducer is equipped with a locking system,which can be locked at any position.
3.Ensure more accurate sawing.
4.About walking track
Other Our
Other:T-shaped guide rail is adopted , and the operation is not stable enough.
Our:The use of cylindrical linear guide rail makes the operation stable and the walking more labor-saving.
5.About engine starting
Other Our
Other:1.Manual start only. 2.The engine support frame is thin and vibrates greatly.
Our:1.It can be started electrically or manually,with more choices and convenience. 2.The double-layer support frame can better reduce the vibration and has better stability when combined
with the sliding block.
Our certificate
MEMBERSHIP CERTIFICATE ENGINE CERTIFICATE CE CERTIFICATE
FAQ
Q: Are You Factory Or Trading Company?
A) We Are Iso9001 Certified Factory, Mainly Manufacture In Forestry & Farm Machinery.
B) Using "Self-Produced Self-Marketing" Business, Reducing The Cost Of Intermediate Links.
Q: What's Your Company Advantages?
A) As The Leading Manufacturer Of Forest Machines, We Have Exported To European Market For More Than Ten Years, Familiar With Forest And Farm Market And Can Recommend To Clients Right Products.
B) We Have Various Products And Can Offer All The Machines And Tools In The Forest And Farm. You Can Get All The Items You Need. Easy And Convenient For You.
C) With Us Your Money And Your Business Is Safe. We Can Offer 7-Days Refund In Case Of Bad Quality
D) Coming Together Is a Beginning; Keeping Together Is Progress; Working Together Is Success.
Q: Can We Buy One Sample?
Yes, We Need To Add Sample Fee To The Price And Will Return It Back To Your After Receiving Your Large Order In Future.
Q: What's Your Delivery Time?
After Receiving Your Payment, We Start To Produce Your Order. It Usually Takes About 15-45 Days Depending On The Products You Order. Q:
How Do You Control Your Quality?
To Guarantee High Quality And Efficient Management, We Have Passed Iso9001 Quality Management System Certificate. All Of Our Products Are 100% Inspected Before Shipment. Our Whole Manufacturing Processes Are Under a Very Serious And Strict System In Our Company.
Q: What's Your Product Warranty?
The Warranty Time Of The Machine Is One Year. During This Period, We Will Send You The Replacement For The Broken Part(Not Man Made). To Meet The Every Demand Of Customer Is Our Goal. We Are Standing By For Any Question Of Customer. We Try To Make Our Service Fast, Efficient And Satisfied.
Q: What's Your Company Mainly Exporting Market?
We Mainly Export To European, North American, Australia, English And Southeast Asia Market. Because Of Good Quality And Service, We Have Establish Good And Long Business Relations With Many Clients. Welcome Clients From All Over The World To Visit Our Factory.
>>
