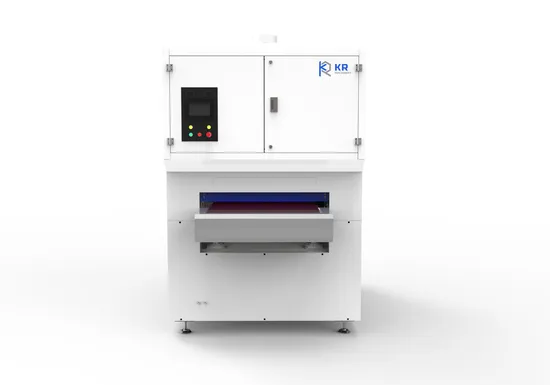

High Speed 800br 1000br 1300br Automatic Metal Deburring Machine Edge Rounding Laser Cutting Plasma Punch Parts Laser Oxide Removal Easy Debugging

Product Description

Product Description
Advantage Uniform edge rounding and uniform surface treatment. Suitable for iron, stainless steel and aluminum. Simple grinding belt speed adjustment. Quick and easy tool swapping.
The metal deburring machine has three series, br series, bb series & r series, b means belt, which used for removing big & small burrs, r means roller, which used for removing small burrs, chamfer and beautiful surface. The width of working table are 800mm, 1000mm, 1300mm & 1600mm.

Specification
br
(belt +roller)
Dual function, mainly used for deburring and chamfering, for thin metal and thick metal.
Standard with vac-sorb table, exhaust fan & dust collector.
Eg:
800br-2+4 means 800mm working table with 2* belt and 4*rollers
Note:
1 belt can handle burrs within 2mm, if the burrs is big, 2 belts are needed. The first rough belt used for removing big burrs, the second exquisite belt is used for removing small burrs.
r
(rollers only)
Mainly used for chamfering.
Standard with vac-sorb table, exhaust fan & dust collector. Working with medium and low power laser cutting machine Applicable materials: stainless steel, aluminum, copper Materials that need beautiful surface and chamfer.

bb
(2*belts only)
Mainly used for deburring metal burrs.
Standard with common table & dust collector, without exhaust fan. Working with high power laser cutting machine, plasma cutting machine Thick CS metal with big burrs Eg:
800bb means 800mm working table with 2* belts

Product Parameters
Technical parameter

Model	800br-1+4	1000br-1+6	1300br-1+8
Maximum working width	800mm	1000mm	1300mm
Thickness of workpiece	0.5-100mm	0.5-100mm	0.5-100mm
Sand belt size	1900*820mm	2200*1020mm	2200*1320mm
Brush roller size	Φ300× 300mm*4	Φ300× 300mm*6	Φ300× 400mm*8
Height of working table	900-980mm	900-980mm	900-980mm
Minimum size of workpiece	≥50*50mm	≥50*50mm	≥50*50mm
Feeding speed	0.5-6m/min	0.5-6m/min	0.5-6m/min
Rolling brush speed	8-20r/s	8-20r/s	8-20r/s
Metric rotation speed	8-12r/s	8-12r/s	8-12r/s
Belt motor	7.5KW	11KW	18.5KW
Roller motor	2.2KW*2	2.2KW*3	2.2KW*4
Revolution motor	1.5KW	2.2KW	2.2KW
Feeding motor	1.5KW	1.5KW	2.2KW
Roller lifting motor	0.37KW	0.37KW	0.37KW
Table lifting motor	0.75KW	0.75KW	1.1KW
Dust collector	3KW	3KW	5.5KW
Exhaust fan	15KW	15KW	15KW
Total power	About 34KW	About 40KW	About 54KW
Noise	≤85dB	≤85dB	≤85dB
Dust removal efficiency	≥85%	≥85%	≥85%
Machine dimension(L*W*H)	2900*1600*2200mm	2900*1800*2200mm	2900*2100*2400mm
Weight	About 3.2tons	About 4tons	About 5tons

Technical parameter

Model	600bb	1000bb
Maximum working width	600mm	1000mm
Thickness of workpiece	1-80mm	1-80mm
Sand belt size	1900*650mm	1900*1020mm
Height of working table	850-930mm	850-930mm
Minimum size of workpiece	≥50*50mm	≥50*50mm
Feeding speed	0.8-5m/min	0.8-5m/min
Belt motor power	7.5KW*2	11KW*2
Conveyor motor power	1.5KW	2.2KW
Dust collector	3KW	3KW
Total power	About 20KW	About 27KW
Noise	≤85dB	≤85dB
Dust removal efficiency	≥85%	≥85%
Controller type	button	button

Detailed Photos

Simple
Packaging & Shipping

After Sales Service
1. The warranty period will be maximum 1 years (except for wearing parts;),please refer to the detailed warranty policy on each part according to our AS regulation file. The warranty period is calculated from the date of delivery.
2. In case of any component failure during the warranty period, we are ready to provide telephone and/or online support.
3. During warranty period, we will deliver the parts for free (expenses of parts, not including transportation fees) if the parts cannot work due to non-human reasons.
4. During warranty, if any part needs to be repaired in China, the transportation fees from the customer's factory to China should be borne by the customer, the transportation fees from China to customer's factory should be borne by the supplier.
5. Service after the warranty period: we provide continuous services and support for our customers when the warranty period expires, the customer should bear the expenses of air tickets, parts, accommodation and service(100usd/day/person).

Company Profile
Shandong kr machinery technology co.,Itd was built in the year of 2019,our product scope mainly includes sheet metal fabriction machines such as fiber laser cutting machine,fiber laser welding machine,automation etc.We have been keeping improving the machine and application of sheet metal fabrication,and aim to provide the best product and service for our customers.We have built two overseas branchs by now and expanding our business globally.
KR Machinery has built partnership with customers from South Korea, India, Malaysia, Vietnam, Finland,USA , Canada, Mexico, Australia, New Zealand, Brazil, Egypt, German, England, Russia, etc,and expanding our business globally now. Welcome more partners all over the world visit us.
