Lgh75/100 Pi-E ISO Piston Electric Compaction Grouting Pump

US$3,800.00-14,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
LGH75/100 PI-E
Position of Pump Shaft
Vertical Edge
Certification
CE, ISO, SGS
Piston Diameter
100mm
Piston Stroke
150mm
Adjustable Pressure ( Low Pressure)
0-50bar/725psi
Adjustable Flow Rate( Low Pressure)
0-75L/Min
Adjustable Pressure ( High Pressure)
0-100bar/1450psi
Adjustable Flow Rate ( High Pressure)
0-40L/Min
Power Unit
7.5kw
Weight
390kg
Overall Dimension
1040*550*1650mm
Chassis
Skid
Transport Package
in Plywood Case
Specification
ISO 9001, CE
Trademark
Leadcrete
Origin
Henan, China
HS Code
8413509090
Production Capacity
0-75L/Min

Product Description

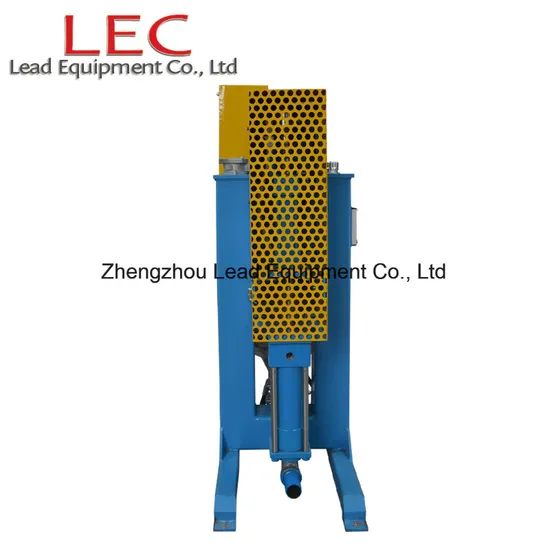

LGH75/100 PI-E ISO piston electric compaction grouting pump

Product Description
The LGH75/100 PI-E high pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.


Specification of cement grout injection pump

Item

LGH75/100 PI-E grout pump

Piston diameter

100mm

Piston stroke

150mm

Adjustable pressure ( low pressure)

0-50Bar/725psi

Adjustable flow rate( low pressure)

0-75L/min

Adjustable pressure ( high pressure)

0-100Bar/1450psi

Adjustable flow rate ( high pressure)

0-40L/min

Discharge pipe size:

M27x2

Inlet pipe size:

G2''

Power Unit

7.5kW

Chassis

Skid

Weight

390Kg

Overall Dimension

1040x550x1650mm

Note: Chassis: Skid or Tyre
We also could according to your demands to customize

Applications of cement grout injection pump
Civil Engineering -dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
Structural - building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
Construction - pavement under sealing, slab jacking and slab raising
Marine - underwater foundations, piers, breakers, shoreline foundations
Mining - tunnel lining, contact grouting, shaft waterproofing
Utilities - encasements, waterproofing, slope line grouting
Geotechnical - deep well casing, monitor wells, well sealing and abandonment


Features of cement grout injection pump
Compact structure, light weight, easy operate, low maintenance cost;
With digital display counter: it can display at any time, and can accumulate work times;
Flow and pressure can be adjusted step-less;
Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
With full-hydraulic shaft device,stable and reliable operation;
Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.

After-Sales Service
During-sale service for cement grout injection pump
1. Acceptance of the product
2. Assist client product construction scheme

After sale service
1. Spare parts will be delivered as you need.
2. Engineers will go to clients' site for guiding the installation and test-running;
3. Warranty period: 12 months since the installation and commissioning;

For more information about cement grout injection pump , please feel free to contact us.
