Basler AVR Dm110 Digital Excitation Control System

Product Details

Product Description

Product Description

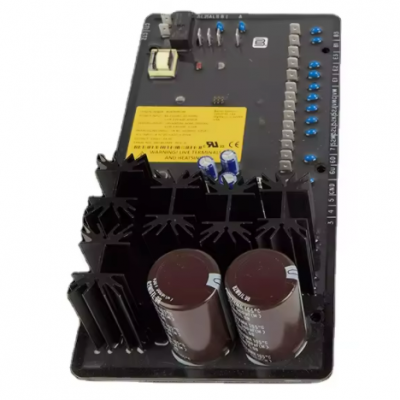

BASLER AVR DM110 Digital excitation control system
The DM110 is a digital, 2-phase sensing, permanent magnet generator (PMG) or auxiliary winding powered automatic voltage regulator (AVR) incorporating VAR/Power Factor control.
The DM110 is provided as standard for the STANFORD® P80 and STANFORD® S9 and is also an option across the whole range of alternators
FEATURES
ƒ Microprocessor based
ƒ 0.5% Voltage Regulation on the generator
ƒ 63Vdc @ 7Adc PWM output
ƒ 0-3 x V/Hz limiting
ƒ Soft Start capability
ƒ 2 selectable motor start programs
ƒ 20 standard stability selections and one customizable selection
ƒ VAR/PF control
ƒ Overexcitation limiting
ƒ Underexcitation limiting
ƒ Voltage Matching
ƒ Manual Mode (Field current regulation)
ƒ Paralleling input from 1 or 5A CT
ƒ Five generator protection functions including Loss of Sensing transfer to manual
ƒ Alarm Contact Output
ƒ Accessory input
ƒ LED Annunciation of operating conditions
ƒ Setup via PC using BESTCOMS software (included)
ƒ cURus recognition per UL 508 and CSA Standard C22.2 No. 14
ƒ WINDOWS® SOFTWARE
ƒ Interface for setting and communicating with the
ƒ DM110 digital AVR
ƒ Bestcoms DM110 software included. ADDITIONAL (DM110) FEATURES
ƒ Inbuilt Remote Control interface 4-20mA
ƒ An additional 'over excitation' limit for motor starting applications.
ƒ Fail safe alarm on loss of power.
ƒ Controlled recovery (dwell) from voltage dips to aid engine recovery.
ƒ Designed with a horizontal footprint
Size: W 135.6 x H 74.8 x D72.1

---
