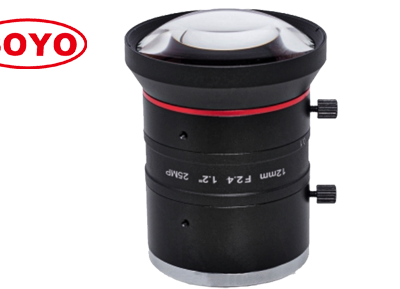

12mm 1.2" 25Megapixel Lenses Manual iris Machine Vision FA 0.39% TV Low Distortion Industrial Recognition 8K Camera Optical Lentz Automatic CCTV Lens C Mount Factory Automation SMT AOI ITS Positioning Measurement Scan
High resolution : 25 megapixel cover all 8K & 4K
Large format : 1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion: 0.39% TV / -0.28% Optical low distortion for machine vision
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI
Model
| S12MV1224-25M
|
Resolution
| 25 Megapixel
|
Format
| 1.2" (2.74μm)
|
Focal Length
| 12mm
|
Max image circle
| Φ19.3mm
|
Aperture (Close)
| F2.4 Manual iris
|
Angle of View (°)
| 1.2"
| 76.2*62.4*55.33
|
M.O.D
| 0.1m
|
Relative Illumination
| 81.4% ( WD=300mm F2.8 )
|
Distortion
| 0.39% ( TV ) ; -0.28% (Optical )
|
B.F.L
| 18.5mm , WD=600mm
|
CRA
| 6.02°
|
Size
| Φ50*66.96mm
|
Projector
| Center ≥200lp/mm; Edge Φ16 ≥160lp/mm
|
Mount
| C
|
Weight
| 300g
|
Marks
| AT430~680nm T≥85%; 15G Element
|
