Two Roll Open Mixer Mill / Mixing Machine for Rubber/Mixing Mill/Rubber Mill

US$4,700.00-50,000.00 1 set (MOQ)

Basic Info.

Model NO.
XK-160/250/300/360/400/450/560/660
Control Type
PLC
Automatic Grade
Automatic
Power Source
Mechanical
Type
Open Mixing Mill
Roller
Cold Hard Alloy Steel
Bush
Nylon/Copper/Bearing
Gearbox
Bull / Planet/ Hardened Teeth
Gap Adjustment
Manual / Motorized
Lubrication
Grease / Thin Oil
Transport Package
Container in Bulk
Specification
XK-160/250/300/360/400/450/560/660
Trademark
JUCAI
Origin
China
HS Code
8477800000
Production Capacity
300 Sets Per Month

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
1000.000kg

Product Description

Two Roll Open Mixer Mill / Mixing Machine for Rubber/Mixing Mill/Rubber Mill
Supply Range
Model : xk-160 ,xk-250,xk-300,xk-360,xk-400,xk-450,xk-560,xk-660

Gearbox : bull gearbox , planet gearbox , hardened teeth gearbox
transmission system: nylon bush , copper bush , roller ball bearing bush
gap adjustment : manual adjustment , motorized adjustment
lurication : manual type , automatic type , grease oil , thin oil
if you have any requirement for machine configuration , we can customize
Application
This machine mainly consists of rollers , hardened teeth gearbox (except XK-160), electrical cabinet ,nylon bush transmission device , main motor , etc . It is widely used for mixing , warming and sheeting rubber , etc .

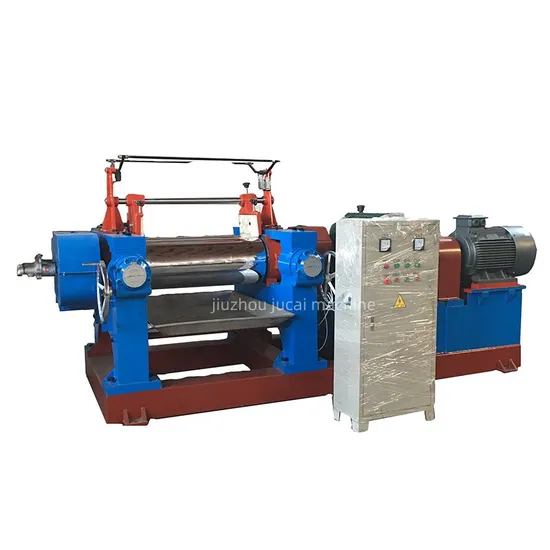

Machine Display

Machine Feature

1.The roller is made of alloy chilled cast iron .Their surfance are hard and wear resistance . Its hardness of surface is HRC68-75
2.The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life
3.The roll gap adjustment is manual control type . It is simple for operation
4.The machine is equipped with overloading protection device , in order to protect the main parts from being damanged
5.The machine adopts the single drive type transmission structure . It adopts the nylon pin coupling to prevent main parts from being damanged due to the overload of transmission part
6.The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use
7.The machine is installed with the emergency button and pulling rope as the safety device
8.This machine are installed with four sets lubrication device and suitable for grease lubrication
9.The machine adopts the PLC control cabinet , the machine will be suitable for your local industrial voltage and frequency
Product Parameters

Parameter/model
XK-160
XK-250
XK-300
XK-360
XK-400
Roll diameter(mm)
160
250
300
360
400
Roll working length (mm)
320
620
750
900
1000
Capacity (kg/batch)
4
15
20
30
40
Front roll speed (m/min)
10
16.96
15.73
16.22
18.78
Roll speed ratio
1:1.21
1:1.08
1:1.17
1:1.22
1:1.17
Motor power (KW)
7.5
18.5
22
37
45
Size (mm)
Length
1104
3230
4000
4140
4578
Width
678
1166
1600
1574
1755
Height
1258
1590
1800
1800
1805
Weight (KG)
1000
3150
5000
6892
8000
Parameter/model
XK-450
XK-560
XK-610
XK-660
XK-710
Roll diameter(mm)
450
560/510
610
660
710
Roll working length (mm)
1200
1530
2000
2130
2200
Capacity (kg/batch)
55
90
120-150
165
150-200
Front roll speed (m/min)
21.1
25.8
28.4
29.8
31.9
Roll speed ratio
1:1.17
1:1.17
1:1.18
1:1.09
1:1.15
Motor power (KW)
55
90/110
160
250
285
Size (mm)
Length
5035
7100
7240
7300
8246
Width
1808
2438
3872
3900
3556
Height
1835
1600
1840
1840
2270
Weight (KG)
12000
20000
44000
47000
51000
Company Profile
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
