Semiautomatic Blow Molding Machine/Semiautomatic Blowing Molding Machine/Pet Bottles Blow Molding Machine/4 Cavities Blow Molding Machine

US$6,500.00 1 Set (MOQ)

Basic Info.

Model NO.
TS-S4-1.5L
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
Free Service After Sales
Transport Package
Wooden Case
Specification
TS-S4-1.5L
Trademark
TAISO
Origin
China
HS Code
8477309000
Production Capacity
50sets/Month

Product Description

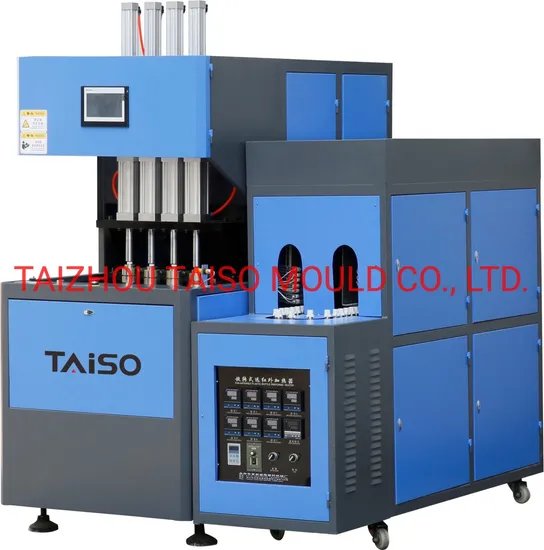

TS-S4-1.5L 4 cavities semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely TS-S4-1.5L is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Features
1. Produce bottle from 0.1L to 1.5L(4 cavities)
2. Output capacity up to 2000 bottles/hour for 0.6L using four -caviti blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
Model TS-S4-1.5L
(1 Blower & 1 Heater)
Max. Volume 1.5L
Output 1600-2000BPH
Number of Cavities 4 Cavities
Neck diameter 18-38mm
Max. diameter 105mm
Max. Bottle height 330mm
Mold thickness 70-230mm
Clamping stroke 190mm
Rated power 25kw
Power consumption 10-15kw
Blower size 1620*820*1950mm
Heater size 2160*600*1350mm
Weight 1200kgs
