Advanced Anti Drone System with Signal Jammer and Radar Technology for Security

Product Description

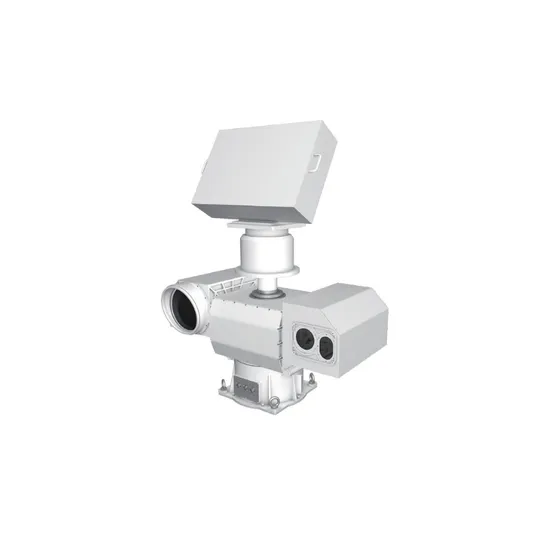

Designed primarly for searching, capturing, tracking, and measuring airbome targets, the system delivers highly precise position infomation of the targets in real time. with a 360" omnidirectional target search capability, the system switches to an automatio tracking mode upon capturing targets and utlizes infrared, visible light, and laser for automatic tracking, identifcation, and position measurement This system is intearated with microwave radar. linstalled above this system, the radar is mainl responsible for target search. The combination of radar and photoelectricity provides search, guidance, and targeting disposal infomation for UAV disposal equipment.
This system can be used for road and railway transportation, and can be used in environments such as jungles, deserts, deserts oceans, and plateaus. Product Feature 1. Multi-band fusion and intelligent detection
2. High measurement accuracy
3. Accurate target detection and recognition in complex backgrounds
4. Strong anti-interference and survival capabilities
Product Parameters

Detector Specifications
Infrared Thermal Camera	Detector	MWR 640x512 HgCdTe
	Pixel Size	25μm
	Operating Waveband Range	3.7um ~4.8um
	NETD	≤ 30mk
	Frame Rate	100HZ
	Optical Lens	10x continuous zoom lens
	Focal Length Range	50mm~500mm (F2.0)
	Pixel Offset	≤ 2 pixels off axis center (zoom coaxiality)
	Cooling Time	≤ 8min
Visible Light Camera	Detector	1/1.8"CMOS
	Pixel Size	3.45μm
	Operating Waveband Range	0.4um~0.7um; 0.8um~1.1um dual band
	Focal Plane Pixel	1920x1080
	Frame Rate	30 frames
	Optical Lens	30x continuous zoom lens
	Focal Length	25-750mm
Laser Rangefinder	Operating Wavelength	1535+5nm
	Divergence Angle	0.6mrad+0.1mrad
	Distance Measurement Accuracy	≤ ±3m
	Distance Measurement Frequency	Single-shot, 1Hz, 3Hz, 5Hz
	Accuracy Rate	≥98%
	Distance Resolution	≤ 50m
General Specifcations
Search Angle Accuracy		Azimuth and elevation s 0.3° (root mean square error
Tracking Angle Accuracy		Azimuth and elevation s 0.03° (root mean square error)
Distance (Target: DJ* Phantom 4)		Infrared tracking detection distance ≥ 6.5km
		Visible light tracking detection distance ≥ 8km
Laser Ranging Range		UAV Ranging ≥ 4km
		Visibility ≥ 15km, relative humidity {<}80%
Automatic Tracking Memory Time		≥3 seconds
Environmental Specifcations
Operating Temperature		-40ºC~(+50+T)ºC
Storage Temperature		-55ºC~(+50+T)ºC
Mean Time Between Failures (MTBF)		≥ 300h
Continuous Operating Time		≥ 8h
Note: T represents temperature rise caused by solar radlation, high-temperature environent test assessed at T=20'0
Radar Specifcations
Operating Frequency Band		KU
Detection Range		≥ 8Km (RCS=0.01 m², 80% detection and identihcation probability)
Azimuth Measurement Accuracy		≤0.3° (TWS)
Elevation Measurement Accuracy		≤0.3° (TWS)
Distance Measurement Accuracys		≤7.5m (TWS)

Detailed Photos
Company Profile Founded in 2015, Xi 'an Zhongke Lead IR Technology Co., Ltd. is an intelligent photoelectric equipment development enterprise, incubated by Xiguang Institute of Chinese Academy of Sciences, with the thermal IR imaging technology at its thermal imaging module. It has long been a well-known supplier of IR imaging and measurement equipment at home, and also the advocate of China's medical IR industry. The company boasts a large number of technical personnel with expertise in various sectors, and a staff of over 150, of which researchers accounted for more than 50%, including 25 senior researchers and 7 talented personnel at provincial or municipal level.Lead IR owns a number of patents, covering thermal imaging module technologies such as high sensitivity IR imaging, high-precision IR thermal field measurement, 3D vision reconstruction, and intelligent IR medical detection. The products developed have been successfully supporting more than 50 well-known enterprises and institutions in various fields. The company and its subsidiaries have three hubs of photoelectric equipment integration, precision optical processing and special lens installation and calibration, equipped with more than 200 sets of advanced equipment of various types, such as CNC polishing, contour graph, three-coordinate equipment, interferometer, photoelectric test system, etc., with the ability to realize the whole process of photoelectric products from design, processing to integration and inspection.After years of exploration, the company has won many honors, including National Key Little Giant Enterprise, National High-Tech Enterprise, National Enterprise with Intellectual Property Strength, Hidden Champion Enterprise of Shaanxi Province, Thermal imaging module Member of Shaanxi Photonic Industry Innovation Consortium, Xi 'an Gazelle Enterprise, and Potential Unicorn Enterprise in Xi 'an High-tech Zone.
