Capillary Radiant Floor Heating System with water capillary tube mats

Product Details

Product Details

Product Description

Product Description
Floor Radiant Heating Capillary Tube Mat System
Introduction:
Capillary tube mat system is an innovative technology developed to replace the conventional radiator heating and air conditioning systems.
The heart of system lies in the Sinolanc capillary mats that contain thin polypropylene tubes through which water constantly flows.
To heat or cool rooms, hot or cold water runs through the capillary tube mats system to exchange heat with the space air by radiation.
They ensure a quick dissipation of the cooling load or a quick supply of the heat requirement.

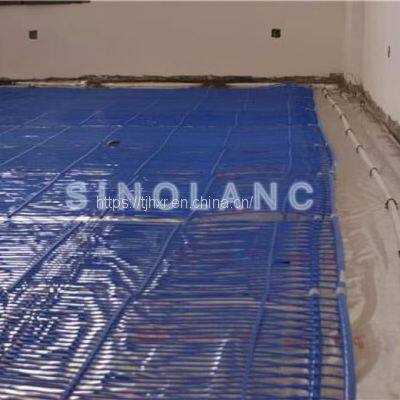

Underfloor heating system with capillary tube mats is widely used and acceptable for providing radiant heating in all buildings.
It is also ideal for retrofitting underfloor heating and connecting to the existing heating system. The Sinolanc mats are either integrated into
an existing screed or laid directly on an existing floor as a thin-layer underfloor heating system and enable gentle temperature control of floor surfaces.
The advantages of capillary radiant floor heating than traditional floor heating:
Capillary Tube Mat Models
Capillary tube mat Features
Energy-efficient
Its water inlet temperature only 28~32℃ used for heating in the winter.
It is considerably belowfloor heating tube 45-60℃ and traditional radiator 70~80℃.
Comparing to common floor heating and radiator, the capillary tube mat can reach energy-saving 20~30% and 40%.
When it is used for cooling in the summer, its water inlet temperature require 16~18℃, much higher than the ordinary air conditioning unit 5-7℃.
The energy-saving effect is higher 60~70% than conventional air conditioning system.
Save space, Reduce the load
The thickness of capillary tube mat installation about 10mm, water filling weight about 750g/m2.For example: a 20 floors of building with traditional central air conditioning, If use capillary tube mat.
Instead of traditional type will save two layers of space and produced great economic benefits.
Widely Energy Selection
Capillary tube mat can work together with air source heat pump, water source heat pump, ground source heat pump, solar energy, etc.
Heath and Comfortable
Capillary tube mat is achieved cooling and heating transfer by the way of planar radiation. Due to its great heat exchange surface area, the air conditioning system thermal inertia of small, no noise, no wind, no need to wash, without the risk of bacterial growth and spread, radiation.etc.
Convenient Installation
The diameter of capillary tube mat is only 4.3mm. It can be hidden installed in wall, ground and ceiling. It doesn’t take up space in the room, convenient installation and has little influence on interior decoration.
Safe and Reliable
Each piece of capillary tube mat must be through the pressure test of 20 bar before delivery. Quality is reliable and the service life for 50 years. It is through professional design and installation to ensure that the system operates stably, no maintenance costs.
Extensive Application
Capillary tube mat not only can be used as the air conditioning terminal product and also can be used as energy collection terminal.

Installation Suggestion
Production Process
