Mixing Granulator Stainless Steel Rapid Wet Mixer Fertilizer Granulator Granulation Machine Lab Shear Wet Mixer Granulating Machine Powder Mixer Granulator

Product Description

Product Description
Our GHL-S High-Speed Shear Mixer Granulator is ideal for small batch granulation in R&D. It efficiently mixes powder and binder at high speed, producing uniform wet granules. Perfect for pharmaceutical, food, and chemical industries, it offers reliable performance for solid preparation production, ensuring consistent and high-quality results.
Main features:
√Movable with heavy duty wheels, with brake
√Compact structure and space saving
√Good reproducibility and safety interlocking system
√With interchangeable granulating pots for different capacity
√Can optionally with transparent glass pot lid for better viewing
√Fully meet FDA,CGMP,GMP
√Control system can optionally complying 21CFR Part11 requirements
Working principle:
Product Parameters

Model		GHLS-3	GHLS-6	GHLS-10	GHLS-15	GHLS-25	GHLS-50
Production capacity(kg/batch)		0.6-1.2	1.2-2.4	2-4	3-6	5-10	10-20
Mixing motor power(kw)		1.1	1.1	1.5	4	4	4
Mixing impellerrotation speed(rpm)		0-400	0-400	0-400	0-220	0-220	0-220
Granulating motorpower(kw)		0.75	0.75	1.1	2.2	2.2	2.2
Granulating chopper speed(rpm)		0-2840	0-2840	0-2840	0-2840	0-2840	0-2840
Compressedair consumption(m³/min)		0.1	0.1	0.1	0.3	0.3	0.3
Compressed air pressure(MPa)		0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Weight(kg)		250	270	300	400	430	450
Dimensions (mm)	L	1400	1425	1450	1530	1580	1630
	L1	1000	1000	1000	1100	1100	1100
	W	700	700	700	750	750	750
	H	1110	1120	1140	1250	1300	1600
	H1	750	750	750	750	750	750
	H2	730	730	730	720	720	720

Model		SHL-100	SHL-150	SHL-200	SHL-300	SHL-400	SHL-500	SHL-600	SHL-800
Production capacity(kg/batch)		20-40	30-60	40-80	60-120	80-160	100-200	120-240	160-320
Mixing motor power(kw)		11	15	22	30	30	37	45	55
Mixing impeller rotation speed(rpm)		0-200	0-200	0-200	0-200	0-200	0-170	0-170	0-150
Granulating motor power(kw)		4	5.5	5.5	7.5	7.5	7.5	7.5	11
Granulating chopper speed(rpm)		0-2900	0-2900	0-2900	0-2900	0-2900	0-2900	0-2900	0-2900
Compressed air consumption(m³/min)		0.4	0.4	0.6	0.6	0.6	1	1	1
Compressed air pressure(MPa)		0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Weight(kg)		1000	1300	1600	1800	2000	2200	2700	3200
Dimensions (mm)	L	2300	2465	2580	2680	2705	2880	2880	3080
	L1	1900	1900	2000	2100	2100	2300	2400	2600
	W	1600	1600	1800	1800	2000	2150	2150	2200
	W1	900	900	1000	1000	1200	1350	1350	1400
	H	2500	2550	2930	2930	2930	3050	3050	3250
	H1	1050	1050	1280	1280	1280	1400	1400	1600
	H2	1010	1010	1240	1240	1240	1370	1370	1570

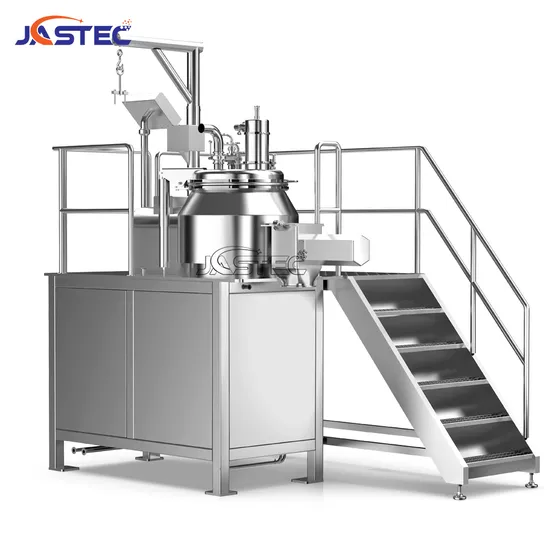

Equipment details display
Company Exhibition
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc.

---
