US$1,200.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Dyn11/Yd11/Yyno
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC, CE
Usage
Single-phase Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics
Power Frequency
Core Material
Silicon Steel
Input Voltage
7620/13200y Volts
Output Voltage
240/480 Volts
Winding Material
Copper\Aluminum
Oil Temperature
65 Degree
Transport Package
Wooden Box
Specification
IEC60076/IEEE/ANSI/DOE/As60076/Ents35-1 Ect
Production Capacity
8000 Unit Per Month
Packaging & Delivery
Package Size
465.00cm * 485.00cm * 855.00cm
Package Gross Weight
300.000kg
Product Description
Product Description

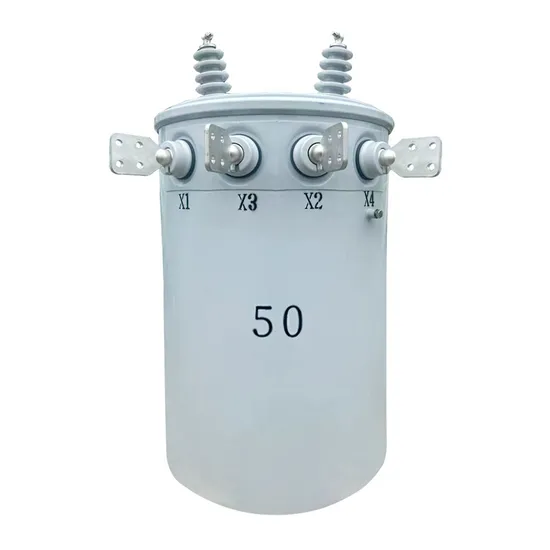

The The overhead single-phase electrical transformer is ubiquitous in diverse locations, including rural areas, remote regions, and scattered villages, where it serves as a reliable source of high-quality power for daily lighting, agricultural operations, and industrial facilities.
Designed for single-pole mounting
Reduces installation footprint
Offers small capacity
Features a limited low-voltage power supply radius
Boasts low line losses and superior power supply quality
Provides high overload capabilit
Features & Advantages of Single-Phase Pole-Mounted Transformer:
Compact Design: Ideal for limited spaces. Easy Installation: Quick setup on utility poles. Outdoor Durability: Resilient in harsh weather. High Efficiency: Minimizes energy losses. Reliable Performance: Reduces electrical faults. Versatile Applications: For residential, commercial, and industrial use. Cost-Effective: Competitive pricing with reliable performance. Minimal Maintenance: Durable and low-maintenance. Product Parameters
When placing order, please provide the following technical parameters
1. Prefabricated substation type;
2. Transformer model and capacity;
3. High and low voltage circuit main wiring scheme;
4. Types and parameters of electrical components with special requirements;
5. Shell Color;
6. Names, quantities and other requirements of spare parts and spare parts;
Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Dimension(mm) | Weight(KG) |
W | D | H | Oil Weight | Total Weight |
5KVA | 24.94/14.4kV | 120/240V | 465 | 485 | 855 | 15 | 92 |
10KVA | 12.47/7.2kV | 480Y/ | 500 | 525 | 885 | 22 | 150 |
15KVA | 34.5KV/ | 277V | 520 | 565 | 905 | 30 | 210 |
25KVA | 19.92KV/ | 600Y/ | 560 | 590 | 935 | 45 | 258 |
37.5KVA | 13.8KV/ | 347V | 610 | 625 | 935 | 50 | 340 |
50KVA | 13.2KV/ | | 635 | 675 | 1035 | 62 | 395 |
75KVA | or others | | 745 | 840 | 1035 | 88 | 480 |
100KVA | | | 770 | 965 | 1035 | 94 | 530 |
167KVA | | | 795 | 890 | 1035 | 138 | 680 |
250KVA | | | 988 | 1001 | 1035 | 150 | 780 |
333KVA | | | 1012 | 1015 | 1035 | 172 | 850 |
Our Advantages Detailed Photos
Application
Our Factory
Certifications
Packaging & Shipping
Our regular packaging: wooden boxes or customized support. We support multiple transportation methods, transportation costs, and the most suitable
transportation method for you. You can click here to contact us and help you check.
FAQ
1. Q: Are you a trading company or manufacturer?Are OEM and ODM available?
A: We are a factory with more than 10 years experiences.
2.Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:We have a product catalog. Please contact us online or via email to request a copy.
3. Q:What about the production?
A:In general,it take 25 working days for production and it depend on the different style.
4. Q: Do you have the products in stock?
A: Depending on your request,we have standard models available.
5. Q: How can I pay you?
A: Pay by T/T and L/C is acceptable.6. Q: Can I get guarantee of products and How do you solve quality problems?
A: Every product comes with a 1 year quality warranty, provided the products are used correctly by
the customer. Please provide detailed photos of quality problems, Our technical and quality testing
department will analyse.We will make a satisfied solution within 2 days.
>>
