Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Mechanical Drive
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Max. Length of Workpiece (mm)
750
Machining Capacity
Light Duty
Max. Weight of Workpiece(Kg)
100kg
Travel (X Axis)(mm)
260mm
Travel (Z Axis)(mm)
290mm
Positioning Accuracy (mm)
0.01mm
Repeatability (X/Y/Z) (mm)
0.015mm
Range of Spindle Speed(r.p.m)
0 - 2200 r.p.m
Dimension(L*W*H)
1550X920X1450mm
Transport Package
Plywood Wooden Box
Specification
1550x920x1450mm
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
155.00cm * 92.00cm * 145.00cm
Package Gross Weight
850.000kg
Product Description

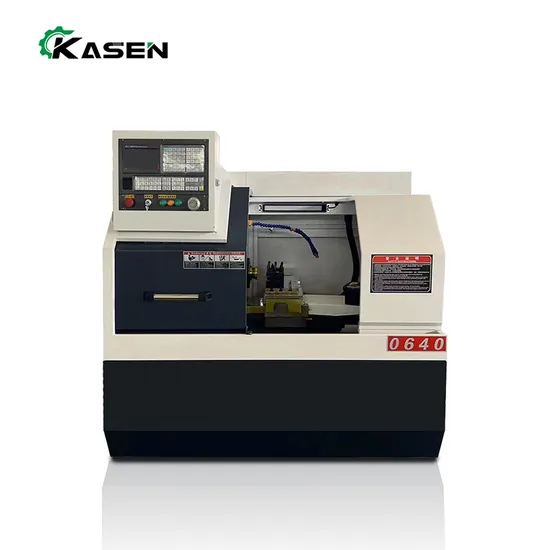

CK0640 Small Metal CNC Lathe Automatic Chuck Lathe Center
Product Description
Product Parameters:
This kind of CNC machine tools CK0640 turning machine cnc lathe frame hobby mini lathe using mechanical and electrical integration design. Beautiful appearance, reasonablel structure, wide range of uses, easy to operate. The machine can be automatically controlled,l capable of automatically processing a variety of parts inside and outside the circle, face, grooving,any conical, spherical, and a variety of British-made cylindrical, tapered thread. And with a perfect S.T.M function, can send and receive a variety of signals to control the automatic processing.The main car using high-precision mobile bearing support, high precision rotary. The CKo640 turning machine cnc lathe frame hobby mini lathe guide rail with high wear-resistant cast ironl and by the ultrasound quenching, and artificial aging treatment, to ensure long-term stabilityl of machine geometry accuracy. Vertical and horizontal carriage using high-precision balll screw drive,dynamic performance, high displacement accuracy. All sliding surfaces of thel machine adopt concentrated drip lubrication. CKo640 turning machine cnc lathe frame hobbyl mini lathe is widely used in electrical appliances, hardware tools. Valves, gas pipe fittings and other complex parts of the manufacturing process, is the metal machining industry ideal high-efficiency equipment.
Model | | CK0640 | CK0660 |
Drawn pipe diameter | mm | | 42 | 60 |
Max. swing diameter over slide | mm | | 130 | 100 |
Max. workpiece length | mm | | Collet 200 | Collet 200 |
chuck 120 | chuck 120 |
Spindle head form | | | A2-5 | A2-5 |
Spindle bore | mm | | 48 | 68 |
Max. rotation diameter over bed | mm | | 250 | 250 |
Lathe bed width | mm | | 260 | 260 |
X/Z repeat positioning accuracy | mm | | 0.012/0.013 | 0.012/0.013 |
X/Z maximum stroke | mm | | 260/240 | 260/240 |
X/Z fast-moving feed | mm/min | | 4000/8000 | 4000/8000 |
Spindle speed range | r/min | | 150-2500 | 150-2500 |
Main motor power | kw | | 3 | 3 |
Machine size (LxWxH) | mm | | 1600x1000x1550 | 1600x1000x1600 |
Net weight | kg | | 950 | 1000 |
Detailed Photos
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
>>
