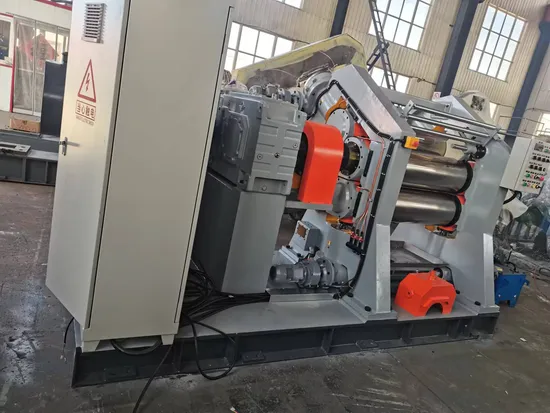

High Quality Three Roll Rubber Calender Machine for Calender Products Factory

Product Description

Product Description Introduction: Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet. Application:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film. Features: high specification, high speed of roller, high precision of half products, high level of automation of machine. 1.Rolls: chilled alloy cast iron rolls with worksurface highhardness 68~72hs, so it is wear-resistant and durable. The rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating. 2.Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body. Roller space can be adjusted both by manual or electric mode.
3.Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipe terminal.
4.Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5.Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.
6.Stand frame & apron: heavy duty steel casting.
7.Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8.Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.
9.Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch. While using, the steem, cooling water and heat-conducting oil can be passed into the roller's cavity, so that the working temparature can be adjusted in order to meet the technological requirement. Product Parameters

Model	XY-3I(r)230*630	XY-3I(r)252*720	XY-3I(r)300*900	XY-3(r)360*1120
Roll diameter(mm)	230	252	300	360
Working length of rolls(mm)	630	720	900	1120
Working linear speed of middle roll(m/min)	0.8-8	2-15.9	1.7-17	3-20
Speed ratio	1:1.1 1:1.42:1	1:1:1	1:1:1	1:1.1 0.733:1:1 0.733:1:0.733
Adjusting nip range (mm)	0-7	0-10	10	0-10
Min. calendaring thickness(mm)	0.2	0.2	0.2	0.2
Calendaring product width(mm)	500	550	700	920
Driving motor power(kw)	7.5	22	30	45
Overall size(L*W*H) mm	3168*890*1830	3950*1720*1210	4200*1500*1950	6300*1500*2440
weight(ton)	3	5.5	9	14

XY-3(r) 400*1200	XY-3(r) 450*1400	XY-3(r) 550*1500	XY-3(r) 610*1730	XY-3(r) 710*1800	XY-3(r) 710*2130
400	450	550	610	710	710
1200	1400	1500	1730	1800	2130
3-26.39	2.62-26.2	3-30	5.4-54	4-40	3-30
1:1:1 1:1.383:1.383 1:1.383:1	1:1:1 1:1.5:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	0.5-1	1:1.5:1
0-10	0-10	0-10	0-20	0-30	0-20
0.2	0.2	0.2	0.15	0.2	0.15
1000	1200	1300	1500	1600	1900
55	75	110	160	110kw*2	185
6300*1500*2440	7320*2200*2900	7550*2400*3800	7010*3950*3730	9950*3050*4040	8500*2670*4770
18	21		42	90	67

Detailed Photos
Packaging & Shipping
Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on. We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.

---
