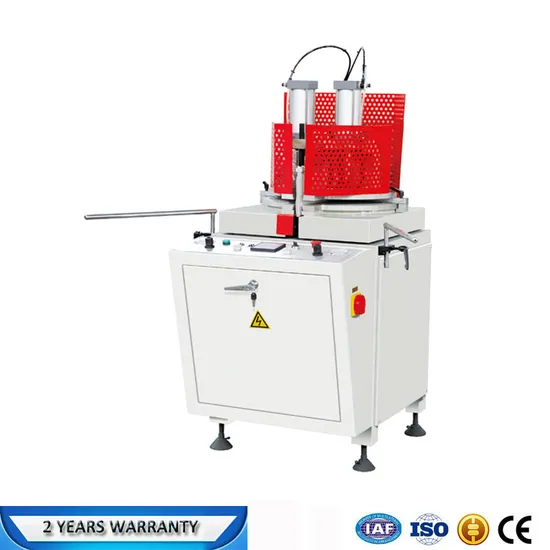

Automatic Machinery for UPVC PVC Profile Window Door Making Arbitrary Angle Single Head Welding Machine

US$2,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
SHD01-120
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
220V
Operation Air Pressure
0.5-0.8MPa
Air Consumption
50L/Min
Input Power
1.5kw
Welding Height
25-120mm
Welding Width
120mm
Transport Package
Plywood Package
Specification
960X900X1460mm
Trademark
Mag
Origin
China
HS Code
83024100
Production Capacity
1000sets

Packaging & Delivery

Package Size
96.00cm * 90.00cm * 146.00cm
Package Gross Weight
280.000kg

Product Description

factory price pvc Single Head Welder / PVC Welding Machine
Product Description
1.30°~180° welding available.

2.PLC control the welding program.

3.Especially for arc window and special angle window.

4.High efficient and easy operating.
Product Parameters
Parameter

Air Pressure
0.5~0.8MPa
Air consumption
50L/min
Input Voltage
220V 50~60Hz or As Customer need
Input Power
1.2Kw
Welding profile height
10-110mm
Welding Width
Max 120mm
Humidity
<80% (no dew)
Welding angle range
30°~180°
Overall size
960×900×1460 (mm)
Weight
280kg
Welding methods
Weld window frame
Weld window-support
Weld from free angle
Weld from 180 angle
Weld profile materials of different heights


Main accessory

PLC
Taiwan Delta
Solenoid valve
Germany FESTO
Cylinder
PC(FESTO Joint Venture Brand)
Motor
Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device
STNC
Electrical Button and Switcher
Schneider
AC Contactor and Circuit Breaker
Schneider
Temperature Controller
Japan Omron


Detailed Photos
Certifications
Exhibition


Company Profile
MAG group co., LTD. Is a window machine and related materials industry group in shandong province. Our products cover window making machine, window glass machine, curtain wall processing equipment, CNC machining center, insulating glass building materials, etc.
With the progress of internationalization and globalization, we have 5 subsidiaries and 4 major production bases, we are the building equipment domain product system complete manufacturer.
