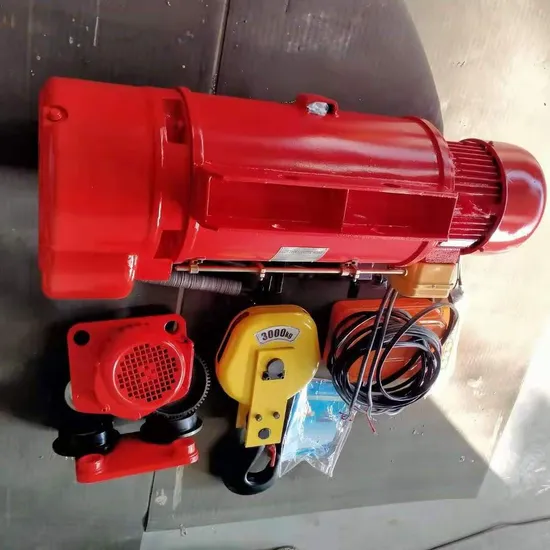

Electric Wire Rope Hoist

Negotiable 10 Pieces (MOQ)

Basic Info.

Model NO.

CD1

Application

Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform

Type

Electric Hoist

Sling Type

Wire Rope

Lift Speed

>8m/min

Maximum Lifting Height

12m

Chain Falls

Certification

ISO9001: 2000, CE

Condition

New

Color

Blue

Model

CD1

Capacity(T)

Standard Lift(M)

Lifting Speed(M/Min)

Motor Power(Kw)

1.6

Power Supply

3-Phase/380V 50Hz

Control Voltage(V)

24V

Insulation Grade

Rating

40%

Spec. of Load Chain

7.1×21

Power Source

Electric

Transport Package

Plywood Case

Specification

Trademark

SHUANG GE

Origin

China

HS Code

8425110000

Production Capacity

10000 PCS

Product Description

1.PEDUCER
THIRD-CLASS DEAD AXEL HELICAL GEAR TRANSMISSION Structure is adopted;gear and tear axel are made of heat treated alloy steel;case and case cover with precise assembly and good seal are made of quality cast iron.The reducer is independent,so it's easy to hlad and unload it.
2.Control Box
It has device with up and down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe openation of electric block,Electric elements are of long service life and operational safety.
3.Steel Wire Rope
It usesGB1102-74(6-37+1)hoist steel wire rope which is durable in use.
4.Button Switch
It's and-operated,easy to handle ,and has two modes of cord operation and cordless remote control.

Model	Capacity (Ton)	Classifa cation grade	Hoisting Height (m)	Hoisting Speed (m/min)	Running speed (m/min)	Pulley ratio	Lifting motor Type Power (kw)	Running motor Type Power (kw)	protec tion grade	Type of I-Beam track	Loop track minimum radius	Net. Weight (kg)
CD1			6		20		ZD21-4		IP44	116a	1	135
MD1	0.5	M3	9	8	20/6.7	42767	-0.8	ZDY11-4	IP54	~	1	140
(CD			12	8/0.8	30			-0.2		128b	1	155
1Y			18		43038		ZDS1-0.2/0.8				1.8	175
MD			24				(0.2/0.8)				2.5	185
1Y)			30								3.2	195
		M3	6	8	20	42767	ZD22-4	ZDY11-4	IP44	116a	1	180
	1		9	8/0.8	20/6.7		-1.5	-0.2	IP54	~	1	190
			12		30					128c	1.2	205
			18		43038		ZDS1-0.2/1.5				1.8	220
			24				(0.2/1.5)				2.5	235
			30								3.2	255
	2	M3	6	8	20	42767	ZD31-4	ZDY12-4	IP44	120a	1.2	250
			9	8/0.8	20/6.7		-3	-0.4	IP54	~	1.2	265
			12		30					145c	1.5	300
			18		43038		ZDS1-0.4/3				2	320
			24				(0.4/3)				2.8	340
			30								3.5	360
	3	M3	6	8	20	42767	ZD32-4	ZDY12-4	IP44	120a	1.2	320
			9	8/0.8	20/6.7		-4.5	-0.4	IP54	~	1.2	340
			12		30					145c	1.5	350
			18		43038		ZDS1-0.4/4.5				2	380
			24				(0.4/4.5)				2.8	410
			30								3.5	440
	5	M3	6	8	20	42767	ZD41-4	ZDY21-4	IP44	125a	1.2	590
			9	8/0.8	20/6.7		-7.5	-0.8	IP54	~	1.2	630
			12		30					163c	1.5	650
			18		43038		ZDS1-0.8/7.5				2	700
			24				(0.8/7.5)				2.8	750
			30								3.5	800
	10	M3	6	7	20	42767	ZD51-4	2×ZDY21-4	IP44	140a	1.5	590
			9	7/0.7	20/6.7		-13	-0.8	IP54	~	1.5	630
			12		30					163c	1.5	650
			18		43038		ZDS1-1.5/13				2.5	700
			24				(1.5/13)				3	750
			30								4	800
