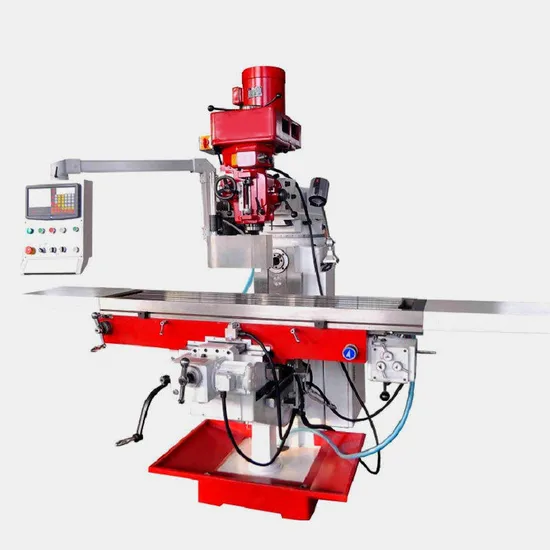

Universal Factory Price Vertical Horizontal Milling Machine X6330W, Drilling Milling Machine

US$3,400.00 1 Set (MOQ)

Basic Info.

Model NO.
X6330W
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Main Motor Power
4/5kw
Spindle Taper
Nt40
Table Feed(X/Y/Z)
1000/1000/400mm
Table Size
1500*330mm
Table Travel (X/Y/Z)
1000*350*360mm
Rapid Speed of Table (X/Y/Z)
1000*1000*400kg
Arm Travel
500mm
Overall Size(L*W*H)
2400*1700*2350
Net Weight
1980
Spindle Speed Range(50Hz)
50-3750 (Variable)
Transport Package
Wooden Case
Specification
X6330W
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description

Specifications unit X6330W
Table size mm 1500*330
Table travel (X/Y/Z) mm 1000*350*360
Rapid speed of table (X/Y/Z) Mm/min 1000*1000*400
Spindle taper Vertical axis - NT40
NT40
Horizontal axis
Table feed(X/Y/Z) mm/min 1000/1000/400
Distance between horizontal nose and table surface mm 0-360
Distance between spindle axis and ram surface mm 300
Spindle speed range(50HZ) Vertical axis r/min 50-3750 (Variable)
Vertical axis 66-4540 (16 grade speeds)
Horizontal axis 40-1300 (12 grade speeds)
T - slot (NO./width/pitch) mm 3/18/85
Arm travel mm 500
Main motor power Vertical axis HP 5kw
Horizontal axis 4kw
Overall size(L*W*H) mm 2400*1700*2350
Net weight kg 1980

X6330W, Drilling Milling Machine
Main Feature: Good stability with rectangular guide rails Work table and guide rail by super audio quenching Table
X Y Z are gear drive automatic feed
Specifications unit X6330W Table size mm 1500*330
Table travel (X/Y/Z) mm 1000*350*360
Rapid speed of table (X/Y/Z) Mm/min 1000*1000*400
Spindle taper Vertical axis - NT40 NT40
Horizontal axis Table feed(X/Y/Z) mm/min 1000/1000/400
Good stability with rectangular guide rails
Work table and guide rail by super audio quenching
Table X Y Z are gear drive automatic feed
