US$1,000.00-10,000.00
|
1 SET
(MOQ)
|
Basic Info.
Model NO.
LEW-1325R/1530R/2040R
Working Area
1300X2500X200mm
Machine Structure
Steel Tube Welded
Spindle
Hqd 3kw/4.5kw/5.5kw/6kw/9kw
Driving System
Stepper/Servo
Transmission
Gear Rack for Xy and Tbi Ball Screw for Z Axis
Table
T-Slot Aluminum/Vacuum Table
Control System
DSP/Ncstudio/Mach3
Rotary Device
Diameter/Length Optional
Max Working Speed
20m/Min
Transport Package
Wooden Box
Specification
3100x2200x1800mm
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
320.00cm * 225.00cm * 180.00cm
Package Gross Weight
1000.000kg
Product Description
Feature
# Thick steel tube welded structure, under heat treatment to ensures minimum distortion, excellent rigidity and powerful strength.
# International famous HQD / HSD brand spindle, powerful with high quality.
# Adopt high precision Taiwan HIWIN/PMI linear rail, moving smooth and high accuracy.
Product Parameters

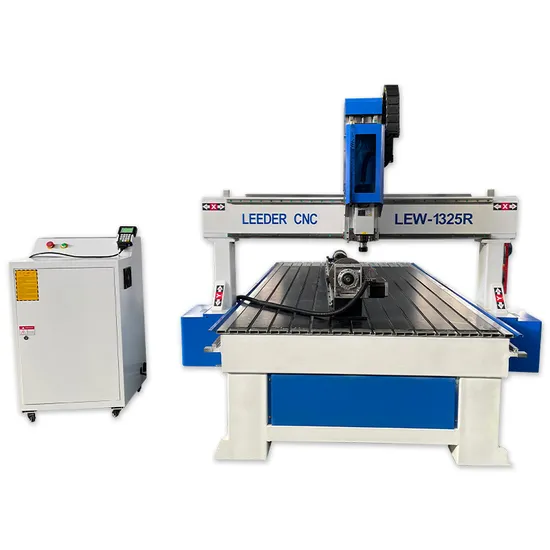

Model | LEW-1325R |
Working area | 1300 x 2500 x 200mm |
Spindle | HQD 3kw / 4.5kw / 5.5kw / 6kw / 9kw |
Spindle speed | 18000-24000 rpm |
Inverter | Fuling / Best |
Control system | DSP / NC STUDIO / MACH3 |
Driving system | Stepper / Servo |
Table | T-slot aluminum / Vacuum table |
Transmission system | XY axis helical gear rack and Z axis Taiwan TBI ball screw |
Guide rails | Taiwan high accuracy HIWIN/PMI square rails |
Working accuracy | ±0.05mm/m |
Travelling speed | 0 - 30m/min |
Working speed | 0 - 15m/min |
Rotary device | Diameter and length optional |
Packaging & Shipping
Inner package: Stretch film and and water-proof film.
Outside package: Standard export plywood case.
By sea/train/air, we can do EXW/FOB/CFR/DDU/DDP trading terms.
Payment
T/T 50% in advance and we start to manufacture this machine after receiving the payment.T/T 50% balance payment before shipping, and we will send you our machine pictures and testing videos to confirm. Then arrange the packing and shipping.
After Sales Service
Three years warranty. 7/24 after sale service. Customer will be able to get free training advice towards our machine in our factory. Can also get free suggestion, consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc. Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.Free parts will be provided if broken not human reason within warranty.Engineer available to overseas service.
>>
