US$140.00-180.00
|
10 Pieces
(MOQ)
|
Basic Info.
Lubrication Style
Lubricated
Cooling System
Air Cooling
Cylinder Arrangement
Balanced Opposed Arrangement
Cylinder Position
Vertical
Structure Type
Closed Type
Compress Level
Single-Stage
Transport Package
Wooden Batten/Wooden Carton
Production Capacity
5000 Pieces/Year
Product Description

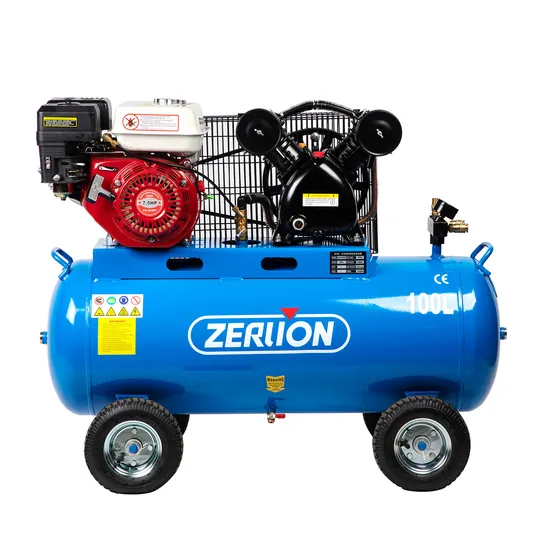

6.5HP Gasoline Petrol Belt Driving Air Compressor with CE Approval
Specification:
MODEL | CYLINDER | CYLINDER | DISTANCE | VOLUME | POWER | SPEED | THEORETIC | WORK | WEIGHT | DIMENSIONS |
NUMBER | DISPLACEMENT | PRESSURE |
MM | EN | MM | L | KW | HP | RPM | L/MIN | BRA | PSI | KG | LXWXH(CM) |
ZA55-50L | 55 | 2 | 35 | 50 | 1.5 | 2 | 1350 | 224 | 8 | 116 | 53 | 76x38x74 |
ZA55-100L | 55 | 2 | 35 | 100 | 1.5 | 2 | 1350 | 224 | 8 | 116 | 67 | 109x43x84 |
ZA65-50L | 65 | 2 | 46 | 50 | 2.5 | 3 | 950 | 290 | 8 | 116 | 58 | 94x38x72 |
ZA65-100L | 65 | 2 | 46 | 100 | 2.2 | 3 | 950 | 290 | 8 | 116 | 85 | 109x43x87 |
ZA65-30GV | 65 | 2 | 46 | 114 | 2.2 | 3 | 950 | 290 | 8 | 116 | 68 | 70x49x124 |
VD65-30GV | 65 | 2 | 46 | 114 | 2.2 | 3 | 950 | 290 | 8 | 116 | 80 | 70x49x124 |
VD65-50GV | 65 | 2 | 46 | 190 | 2.2 | 3 | 950 | 290 | 8 | 116 | 80 | 70x52x145 |
VD65-50L | 65 | 2 | 46 | 50 | 2.2 | 3 | 950 | 290 | 8 | 116 | 63 | 94x38x74 |
2051-100L | 51 | 2 | 46 | 100 | 1.5 | 2 | 1050 | 170 | 8 | 116 | 77 | 105x43x85 |
2065-100L | 65 | 2 | 46 | 100 | 2.2 | 3 | 1050 | 250 | 8 | 116 | 80 | 105x43x85 |
2090-200L | 90 | 2 | 60 | 200 | 4 | 5.5 | 850 | 600 | 8 | 116 | 125 | 142x50x103 |
3065-160L | 65 | 3 | 48 | 160 | 3 | 4 | 1050 | 360 | 8 | 116 | 95 | 121x50x88 |
3080-180L | 80 | 3 | 62 | 180 | 5.5 | 7.5 | 930 | 900 | 8 | 116 | 165 | 161x61x105 |
30100-180L | 100 | 3 | 80 | 230 | 7.5 | 10 | 950 | 1000 | 8 | 116 | 172 | 161x61x107 |
For More Products
Our Exhibition
Why Trust Us ?
Who Are We ? Zhejiang Zhilun Mechanical &Electrical Co.Ltd. Is one of the main manufactures,specializing in the Research and Development,Manufacturing and sales of the Piston air compressor. Our company located in the Hengjie town,LuQiao District, TaiZhou City, far from TaiZhou Airport is only 3KM,and Ningbo port is around 220KM,the traffic is very convenient for your.visiting.
Our company owns an area of 50000 suqare mater and has more than 300 staffs.
We have advanced production equipment and well familiar with the process of the mass production,have high precision measuring instruments and high efficiency of automatic assembly line ensure the quality and quantity of the [roduct. We have strong technical strength and production management ,gathering the technical team and manamement team from the leading enterprise of air compressor in domestic .we set up our town lad and development tesm,with a strong ability to develop thre product ,meeting the diffient demand from the different customer and different ,maket.
We take the maket demand as the guidance, strives for the survival by quality, strives for the development by innovation,always put customers, quality and innovation in the first place, follow up the prefessional management and continuously satisfy the demanded of the customer. We always follow up the principle of people-oriented, legitimate business,honest & trustworthy, focus on the industy of the air compressor, with the effort to create a first-class brand in the industry of air compressor, with the effort to create a first-class brand in the industry of air compressor.
>>
