PE HDPE PVD Material Water Drainage Sheet Wick Drain Production Machine

US$39,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SJ90/30
Type
Profile Extruder
Plastic Processed
PE
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Screw Diameter
90mm
Screw Length-Diameter Ratio
30:1
Output
180-200kg
Heat Power
25kw
Motor Power
55kw
Motor Speed
1500rpm
Product Width
100mm
Product Thickness
3-5mm
PLC Control Screen
Siemens
Transport Package
Conventional Packing
Specification
100mm
Trademark
Zhongrui
Origin
Qingdao China
Production Capacity
1000

Packaging & Delivery

Package Size
3500.00cm * 350.00cm * 350.00cm
Package Gross Weight
5000.000kg

Product Description

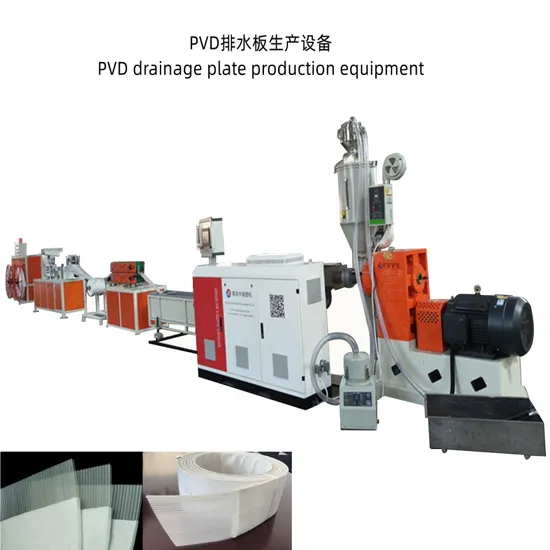

PVD Plastic water drainage board sheet making machine

The PVD insert plate forms a vertical drainage channel in the soft soil foundation. Under the action of the upper auxiliary load, the water is discharged from the sand cushion laid on the upper part to form a horizontal drainage channel, which makes the soft soil foundation reach a high degree of consolidation in a short time and greatly shortens the construction period.
No.
Iterm Name
Quantity
Unit
1
SJ90/30 Single screw extruder
1
Set
2
Automatic feeding and drying system
1
Set
3
Hydraulic screen changer
1
Set
4
Mold
1
Set
5
water cooling tank
1
Set
6
Twin roller hauling-off unit
1
Set
7
Cladding pressing and Welding forming device
1
Set
8
Double winder unint
1
Set
9 PLC electrical control system 1 Set
10
Mixing machine for colour
1
Set

SJ90/30 Single screw extruder
Automatic feeding and drying system
Mold
water cooling tank
Twin roller hauling-off unit
Cladding pressing and Welding forming device
Double winder unint
PLC electrical control system

Product Description
Application:
FAQ
Q1.How to pay to you?
A:1)30% of total amount paid by TT as advance, then the seller start production
2)after the machine is finished ,buyer come to test the machine in seller's factory ,
and then pay the 70% balance by TT or irrevocable L/C at sight . Then seller ship the machine.
Q2.How long is the delivery time?
A: For standard machines, it would be 30 days; For non-standard machines and customized machines according
to client s specific requirements, it would be 45 days.
Q3.Do you arrange shipment for the machines?
A:Yes,for FOB or CIF price, we will arrange shipment for you.
Q4.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
Q5.What's your after-sales service ?
(1)The supplier provides service manual and maintenance instruction of main electric appliances, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.
(2)The supplier is responsible for installation, debugging and training, but the air tickets, insurance, eating, housing and every day 100 USD for each engineer will be born by the buyers. We will realize guarantee of repair; replacement and refund of substandard products within one year after the machine leaves factory. And half a year for electric parts. Fittings of the machine will be supplied at preferential price after one year.
