US$300.00-500.00
|
1 Set
(MOQ)
|
Basic Info.
Transport Package
Carton, Foam, Wooden Cases
Specification

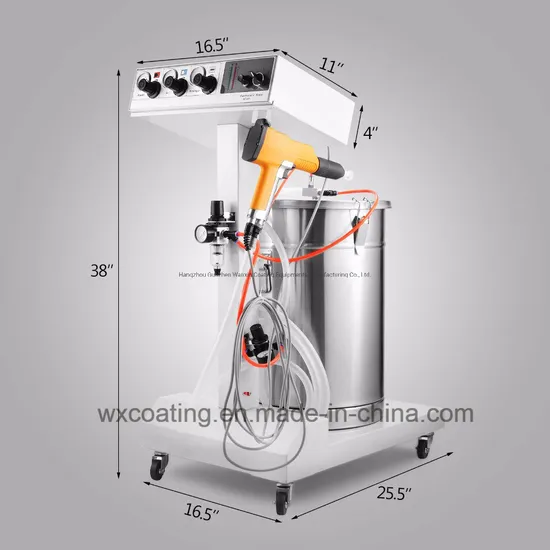

67.5*46.5*98.7cm
Production Capacity
1000set/Sets Per Month
Product Description
Name: Electrostatic Powder Coating Machine
Model: XT-101 Main Production
The XT-101 electrostatic powder coating machine is one kind of Powder Coating Equipment, we have sold it for more than 10 years, it is one of our company's best sellers here. Because of its good price and good quality with low repairing ratio. It is usually used in common and simple workpiece. The electrostatic powder coating machine can apply in all kinds of powder but without malal element.
Application
1. Material
Thermoplastic or a thermoset polymer.
2. Workpiece
Metals such as household appliances, aluminium extrusions, drum hardware, and automobile and bicycle parts.
Working Principle
This electrostatic powder coating machine is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". Applying the electrostatic powder coating to objects is to give negative electric charge to the powder, which is then sprayed towards your workpiece by high voltage electrostatic and then the power will be attracted onto the workpiece.
Operation Steps
Electrostatic Powder coating machine
1.Part preparation or the pre-treatment
2.The powder application
3.Curing
Configurations
Electrostatic Powder coating Gun*1+Powder Injector*1+Control Unit*1+Powder Hopper*1+Trolley*1+Pressure Regulating Valve*1+Oil -water Separator*1
Technical Parameters
Electrostatic Powder Coating Machine in detail
Host | For the Powder and Gas Source
| Spray Gun |
Input Voltage: 110V/220V
| Solenoid Valve Control Voltage: 24V DC
| Input Pressure: ≤ 0.3Mpa
|
Input Powder: 40W
| Input Pressure: 0~0.6Mpa
| The Volume of Powder : Max 550g/min
|
| Output Pressure: 0~0.5Mpa
| Output Voltage: 0~100KV
|
| Largest Gas Consumption: 13.2m³ /h(0.4Mpa/h)
| Output Current: 150uA
|
| Volume of Powder Hopper: 45L
| Complete Gun Weight : 700g
|
Advantages and Characteristics
Electrostatic Powder Coating Machine
1. This Powder Coating Machine has good quality with best price, easily operate.
2. The highest voltage can be up to 100 KV and the output current is only 150uA, so we can use the electrostatic powder coating machine safely.
3. The maximum volume of the powder can reach 550 g/min, which greatly improved the production efficiency.
4. Powder hose and inside powder hose are utilizing Anti-electrostatic material so that all kinds of powder won't stick to around.
5. Current and voltage can be separately adjusted, the Powder Spraying performance can achieve the best effect.
>>
