Stainless Steel JIS5K/10K H74 Single Disc Non Return Wafer Check Valve

US$2.50
10-49 Pieces
US$1.50
50-99 Pieces
US$0.50
100+ Pieces

Basic Info.

Model NO.
Check Valve
Material
Stainless Steel
Connection Form
Wafer
Structure
Swing
Pressure
Ordinary Pressure
Function
Non-Return
Sealing Form
Metal Hard Sealed
Flow Direction
Unidirection
Standard
ANSI/JIS/GB
Application
Industrial Usage, Water Industrial Usage, Household Usage
Description
Check Valve
Size
DN15-DN600
OEM
Available
Sample
Available
Shipment Time
Within 25days
Certificate
ISO9001, CE, CIQ, SGS
Package
Inner Box / Master Carton/ Wooden Case
Cagory
Ball Valve
Parment
Spare Parts
Type
Connector
Feature
Non Return Valve
Usage
Oil,Water,Gas
Transport Package
Carton, Plywood Case
Specification
CE
Trademark
YUZHENG
Origin
Wenzhou, Zhejiang, China
HS Code
8481804090
Production Capacity
100, 000.00 Pieces/Week

Packaging & Delivery

Package Size
6.50cm * 3.78cm * 5.00cm
Package Gross Weight
0.300kg

Product Description

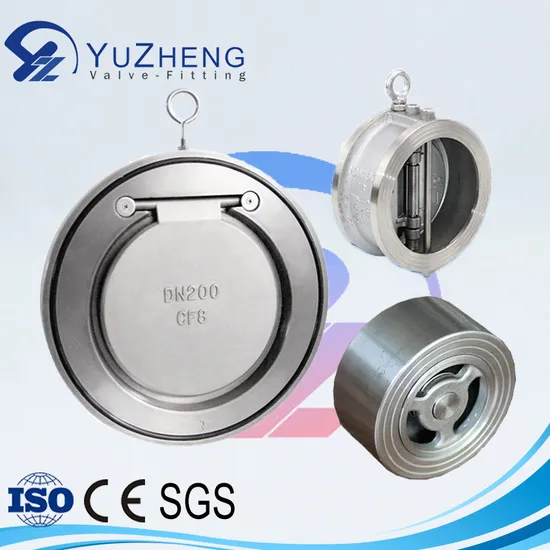

H74 Wafer Single Disc Check Valve in Stainless Steel
What is Check Valve:
A check valve,clack valve, non-return valve or one-way valve is a valve that normally allows fluid(liquid or gas) to flow through it in only one direction.
Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are available in a wide range of sizes and costs, check valves generally are very small,simple or inexpensive. Check valves work automatically and most are not controlled by a person or any external Control; accordingly, most do not have any valve handle or stem.
The bodies(external shells) of most check valves are made of metal or palstic. Product Description Wafer Check Valve Single Disc
Type: H74W-PN16/PN25/PN40
Size: DN15-DN600
Body Material: 304/316/CF8/CF8M Product Parameters
Product name Stainless Steel Check Valve
1)Material 304/316/CF8/CF8M
2)Size DN15-DN200
3)Certificate ISO9001: 2000,CE
4)Working pressure PN16/PN25/PN40/150LB/300LB
5)Connection Ends Thread/Wafer
6)Suitable medium Water, gas, air and some corrosive liquid
7)Temperature Range -20-300 degree C
8)Investment casting body and cap
9)Sealing Metal Seat(304/316)
Our advantage Survival by quality and development by credibility.
Quality first, customer upmost !
100% leakage tested at 100 psi air under water
Can do OEM products
Shipment By Sea/By air/By express according to customers' requirements
Delivery time usual 25 days around and can negotiate as per order qty
Shipping port Ningbo, Shanghai
Term of Payment 30% TT deposit,70% against the copy of B/L / LC
Package detail inner CTN, ourside ply-wooden case
MOQ 10 PCS/size
Gurantee Period 18 monthes
Capacity to produce 100, 000 PCS/week
Detailed Photos
DN d L D
I Type II Type PN1.0 PN1.6 PN2.5 PN4.0
50 32 15 22 105 105 109 109
65 43 15 22 125 125 129 129
80 55 15 22 140 140 144 144
100 77 15 24 160 160 170 170
125 97 16 26 185 185 186 186
150 122 19 29 218 218 220 226
200 145 25 40 270 270 276 293
250 200 29 43 325 325 343 355
300 240 38 50 378 378 403 403
350 269 41 52 437 437 460 477
400 308 51 62 485 485 517 549
450 355 51 62 507 507 567 574
500 410 65 80 592 592 627 631
600 490 70 90 693 693 734 750

Our Advantages
FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and fitting over 10 years.
And we have got the verification of compliance for ball valve from ECM and ISO9001 certificate of manufacturing and processing of valves and fittings.

2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.

3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1pc. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.

4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.

5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your this kind special request, even manufacture it based on your drawing.

6 What is your lead time?
It's around 30 days normally. If we have the products in stock, it will be about 15days

7 How can I check your factory situation while it's difficult for me to come to China?
We have photos and videos on our website and face book, It shows every step of the manufacturing.
We also have a showroom in CA, USA. If you have time, you can take a look.

8 How can you guarantee the quality of products?
First of all, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.

9 How long is the quality guarantee period?
We supply 6 to 12 months for quality guarantee according to customers' using frequency.

10 How do you pack?
1.Plastic bags→2.Paper box→3.Cartons→4.Plywood Case
