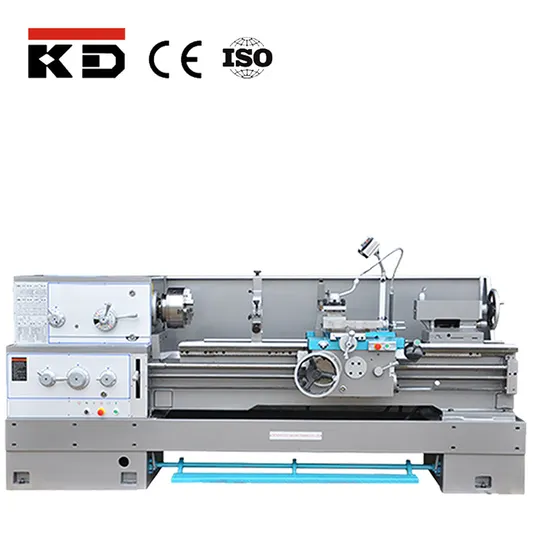

| MODELS | C6140W |
| CAPACITY |
| Max.swing over bed | 420mm |
| Max.swing over carriage | 220mm |
| Max.length of workpiece | 1000/1500/2000mm |
| SPINDLE |
| Spindle bore | 56mm |
| Taper bore of spindle | M.T.NO.6 |
| Steps of spindle speed | 24 |
| Range of spindle speed | 9~1600rpm |
| FEED |
| Range of longitudinal feeds | 0.028~6.43 (0.0010″~0.2392″)mm |
| Range of cross feeds | 0.012~2.73(0.0004″~0.1016″)mm |
| RAPID TRAVEL |
| Longitudinal | 4500mm/min |
| Cross | 1900mm/min |
| THREAD CUTTING RANGE/ NUMBER |
| Metric pitch threads | 0.5~224mm/ 48 |
| Whit-worth threads | 72~1/8 TPI/ 48 |
| Module threads | 0.5~112M.P/ 42 |
| D.P.Threads | 56~1/4DP/ 45 |
| TAILSTOCK SLEEVE |
| Taper bore | M.T.NO.5 |
| Max travel | 150mm |
| External diameter | 75mm |
| OTHERS |
| Size of tool shank | 25×25mm |
| Max travel of cross slide | 320mm |
| Max travel of compound rest | 145mm |
| Main motor power | 7.5kw |
| Overall dimensions(L×W×H) | (2500/ 3000/ 3500)×1000×1285mm |
| Net weight | 2550/2750/2950kg |
The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
