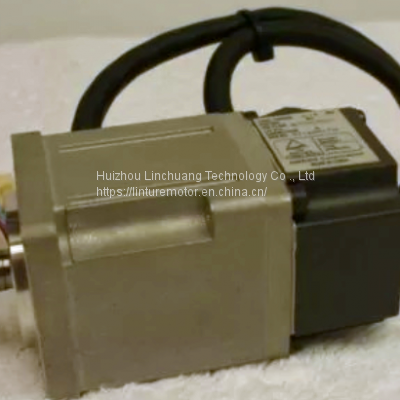

R88M-G05030H-T OMRON Industrial Single Phase Servo Motor Modular

Product Details

Product Description

Product Description
Brand:Model:Origion:High Light:

OMRON	R88M-G05030H-T
Japan
ewing machine servo motor,ac servo motor

Industrial Servo Motor R88M-G05030H-T OMRON Single-phase 100 to 120 VAC (85 to 132 VAC) 50/60 Hz
Characteristics100-VAC Input Models
for Single-phase input type
ItemR88D-KN01L-
ECT-LR88D-KN02L-
ECT-LR88D-KN04L-
ECT-LInput
power
supplyMain
circuitPower supply capacityPower supply voltageRated currentHeat value *1Control
circuitPower supply voltageHeat value *1MassMaximum
motor
capacityMotor Rated Rms CurrentMaximum current of motor

0.4 KVA	0.5 KVA	0.9 KVA
Single-phase 100 to 120 VAC (85 to 132 VAC) 50/60 Hz
2.6 A	4.3 A	7.6 A
16.6 W	21 W	25 W
Single-phase 100 to 120 VAC (85 to 132 VAC) 50/60 Hz
4 W	4 W	4 W
Approx. 0.8 kg	Approx. 1.0 kg	Approx. 1.6 kg
1.7 Arms	2.5 Arms	4.6 Arms
5.1 Arms	7.5 Arms	13.8 Arms

*1. The heat value is given for rated operation.
200-VAC Input Models
for Single-phase/Three-phase input type
ItemR88D-
KN01H-
ECT-LR88D-
KN02H-
ECT-LR88D-
KN04H-
ECT-LR88D-
KN08H-
ECT-LR88D-
KN10H-
ECT-LR88D-
KN15H-
ECT-LInput
power
supplyMain
circuitPower supply capacityPower supply voltageRated currentHeat value *2Control
circuitPower supply voltageHeat value *2MassMaximum
motor
capacityRated effective current of
motorMaximum current of motor

0.5 KVA	0.5 KVA	0.9 KVA	1.3 KVA	1.8 KVA	2.3 KVA
Single-phase or 3-phase 200 to 240 VAC (170 to 264 VAC) 50/60 Hz
1.6/0.9 A *1	2.4/1.3 A *1	4.1/2.4 A *1	6.6/3.6 A *1	9.1/5.2 A *1	14.2/8.1 A *1
14.3/ 13.7 W *1	23/19 W *1	33/24 W *1	30/35.5 W *1	57/49 W *1	104/93 W *1
Single-phase 200 to 240 VAC (170 to 264 VAC) 50/60 Hz
4 W	4 W	4 W	4 W	7 W	7 W
Approx. 0.8 kg	Approx. 0.8 kg	Approx. 1.0 kg	Approx. 1.6 kg	Approx. 1.8 kg	Approx. 1.8 kg
1.2 Arms	1.6 Arms	2.6 Arms	4.1 Arms	5.9 Arms	9.4 Arms
3.6 Arms	4.8 Arms	7.8 Arms	12.3 Arms	16.9 Arms	28.2 Arms

*1. The first value is for single-phase input power and the second value is for 3-phase input power.
*2. The heat value is given for rated operation.
The G5 Series is perfectly integrated into the new Sysmac automation platform. The servo is fully configured through the one software Sysmac Studio that includes configuration, programming, simulation and monitoring for the complete machine. The built-in EtherCAT connectivity with the distributed clock functionality allows accurate synchronization between all servos with less than 1μ jitter. The G5 Series also simplifies your mechanical and electrical design by including double registration input, full closed loop and multi-drive safety functionality.
HIGHER PRODUCTIVITY125 μs system cycle• Faster machine speed keeping same accuracy
• Accurate profile generation in the controller
• The 23 bit high resolution encoder in combination with the improved loop control provide an accurate following profile
INTEGRATED SAFETYSafety control via EtherCAT• Simplified safety installation
• Reduction of safety devices
• Safety function built-in: Fail Safe over EtherCAT (FSoE) Safe Torque Off
• Safety approval: EN ISO 13849-1(Cat.3 PLd), EN61508(SIL2), EN62061(SIL2), EN61800-5-2(STO)
• Troubleshooter integrated with Sysmac Studio

---
